Features
xThe Cruxtec CMH08-SG is an 8-in-1 USB-C hub for connecting a compatible computer to a 4K display, wired Gigabit Ethernet, USB-A peripherals, SD and microSD cards, and USB-C PD power through one compact hub. Its integrated USB-C cable uses a USB 3.2 Gen 2 10Gbps host interface; downstream ports operate at the individual speeds listed below.

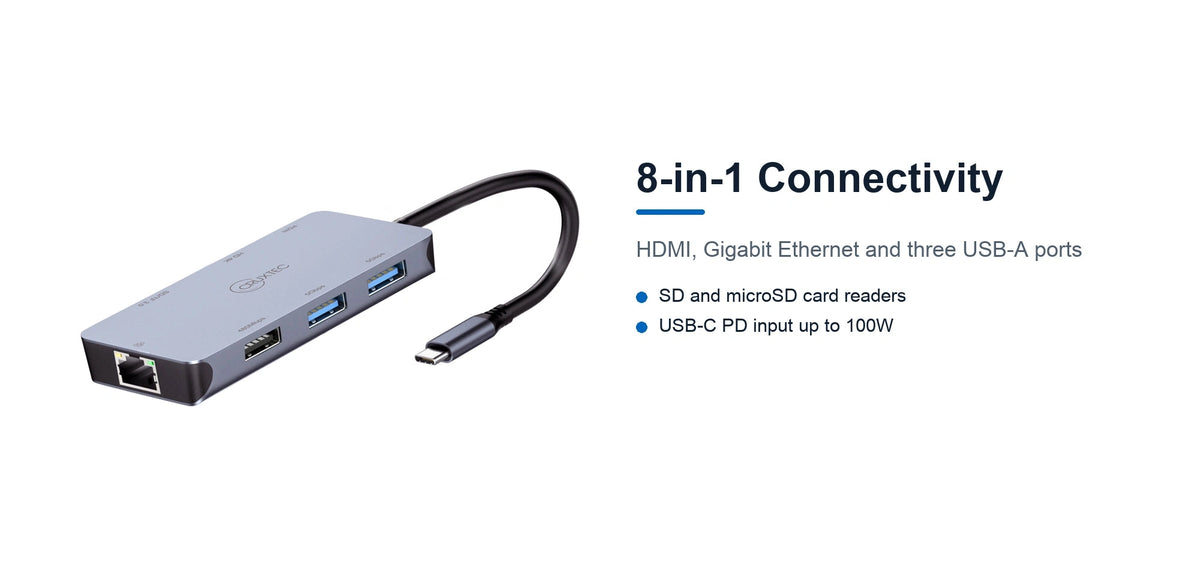

- 8-in-1 connectivity: 1 x HDMI, 1 x Gigabit Ethernet, 2 x USB-A 5Gbps, 1 x USB-A 480Mbps, 1 x SD card slot, 1 x microSD card slot and 1 x USB-C PD input.
- HDMI output up to 4K at 60Hz with a compatible USB-C host that supports DisplayPort Alt Mode.
- USB-C PD 3.0 input supporting up to 100W; actual charging power depends on the charger, host device and hub power use.
- Gigabit Ethernet connection up to 1000Mbps.
- Two USB-A 5Gbps ports for compatible storage and peripherals.
- SD 3.0 and microSD card readers with theoretical transfer speeds up to 104MB/s under supported UHS-I SDR104 conditions.
- Integrated USB-C host cable and compact space grey aluminium and ABS housing.
- No additional driver required on compatible Windows and macOS systems.
Tech Specs
x
1) Product Type: 8-in-1 USB-C Hub
2) Host Connector: Integrated USB-C male connector
3) Host Interface: USB 3.2 Gen 2 10Gbps
4) HDMI Output: 1 x HDMI, up to 4K at 60Hz
5) USB-A Data Ports: 2 x USB-A 5Gbps; backward compatible with USB 2.0 and USB 1.1
6) USB-A Auxiliary Port: 1 x USB-A 480Mbps
7) Ethernet: 1 x RJ45 Gigabit Ethernet, up to 1000Mbps
8) Card Readers: 1 x SD and 1 x microSD (TF)
9) Card Standard: SD 3.0 / UHS-I; theoretical speed up to 104MB/s in SDR104 mode
10) Power Input: 1 x USB-C PD 3.0 input, up to 100W
11) USB-A Output Current: Up to 900mA per USB 5Gbps port; up to 500mA for the USB 480Mbps port, subject to host power availability
12) Material: Aluminium + ABS
13) Colour: Space Grey
14) Chipset: Genesys Logic
15) Product Dimensions: 100 x 48 x 15mm
16) Integrated Cable Length: 15cm
17) Cable Jacket: Black PVC
18) Cable Shielding: Aluminium foil
19) System Support: Compatible Windows and macOS systems
20) Driver: No additional driver required on supported systems
21) HDMI Requirement: Host USB-C port must support DisplayPort Alt Mode; available resolution depends on the host, operating system, display and cable
22) Packaging Dimensions: 135 x 82 x 17mm
2) Host Connector: Integrated USB-C male connector
3) Host Interface: USB 3.2 Gen 2 10Gbps
4) HDMI Output: 1 x HDMI, up to 4K at 60Hz
5) USB-A Data Ports: 2 x USB-A 5Gbps; backward compatible with USB 2.0 and USB 1.1
6) USB-A Auxiliary Port: 1 x USB-A 480Mbps
7) Ethernet: 1 x RJ45 Gigabit Ethernet, up to 1000Mbps
8) Card Readers: 1 x SD and 1 x microSD (TF)
9) Card Standard: SD 3.0 / UHS-I; theoretical speed up to 104MB/s in SDR104 mode
10) Power Input: 1 x USB-C PD 3.0 input, up to 100W
11) USB-A Output Current: Up to 900mA per USB 5Gbps port; up to 500mA for the USB 480Mbps port, subject to host power availability
12) Material: Aluminium + ABS
13) Colour: Space Grey
14) Chipset: Genesys Logic
15) Product Dimensions: 100 x 48 x 15mm
16) Integrated Cable Length: 15cm
17) Cable Jacket: Black PVC
18) Cable Shielding: Aluminium foil
19) System Support: Compatible Windows and macOS systems
20) Driver: No additional driver required on supported systems
21) HDMI Requirement: Host USB-C port must support DisplayPort Alt Mode; available resolution depends on the host, operating system, display and cable
22) Packaging Dimensions: 135 x 82 x 17mm
