Features

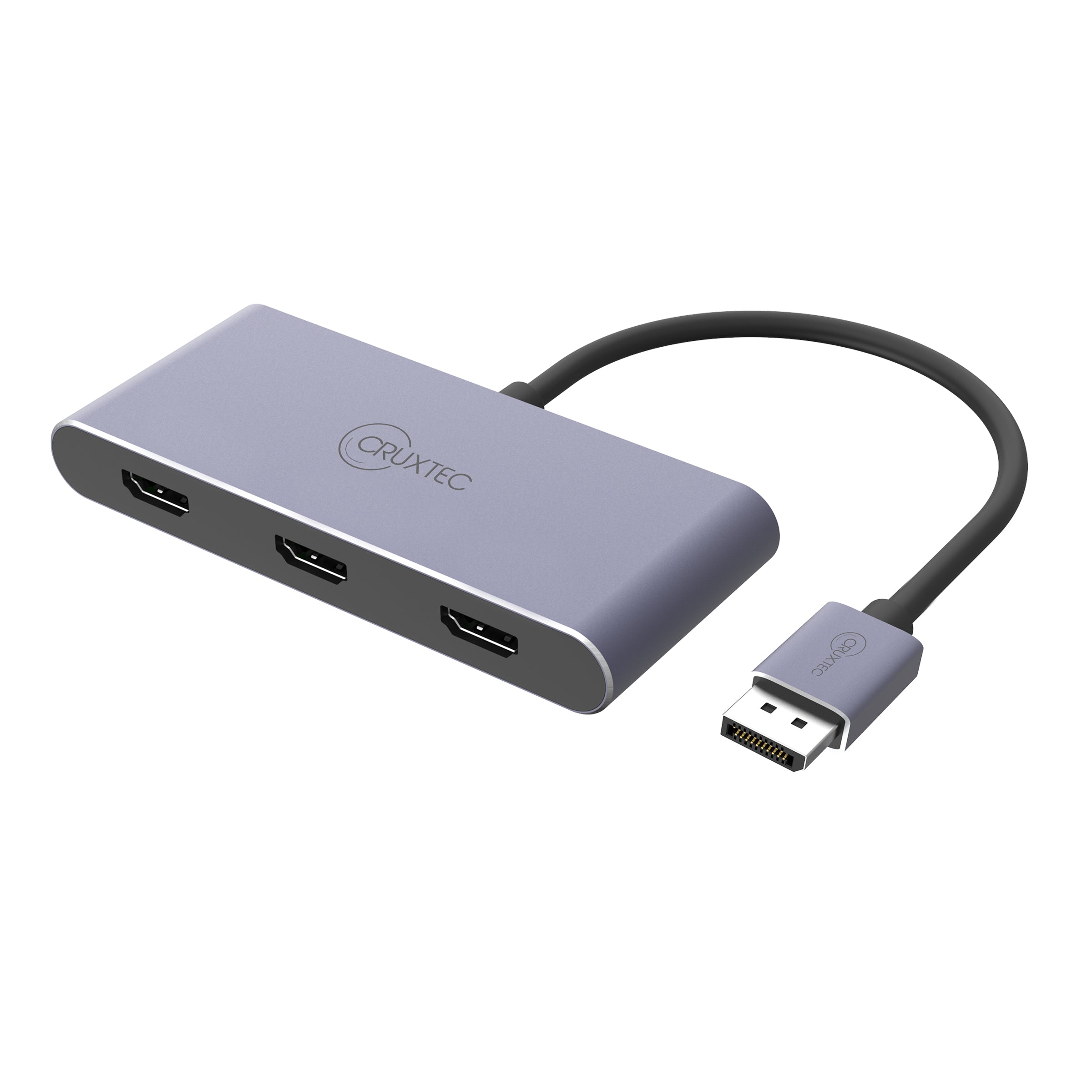

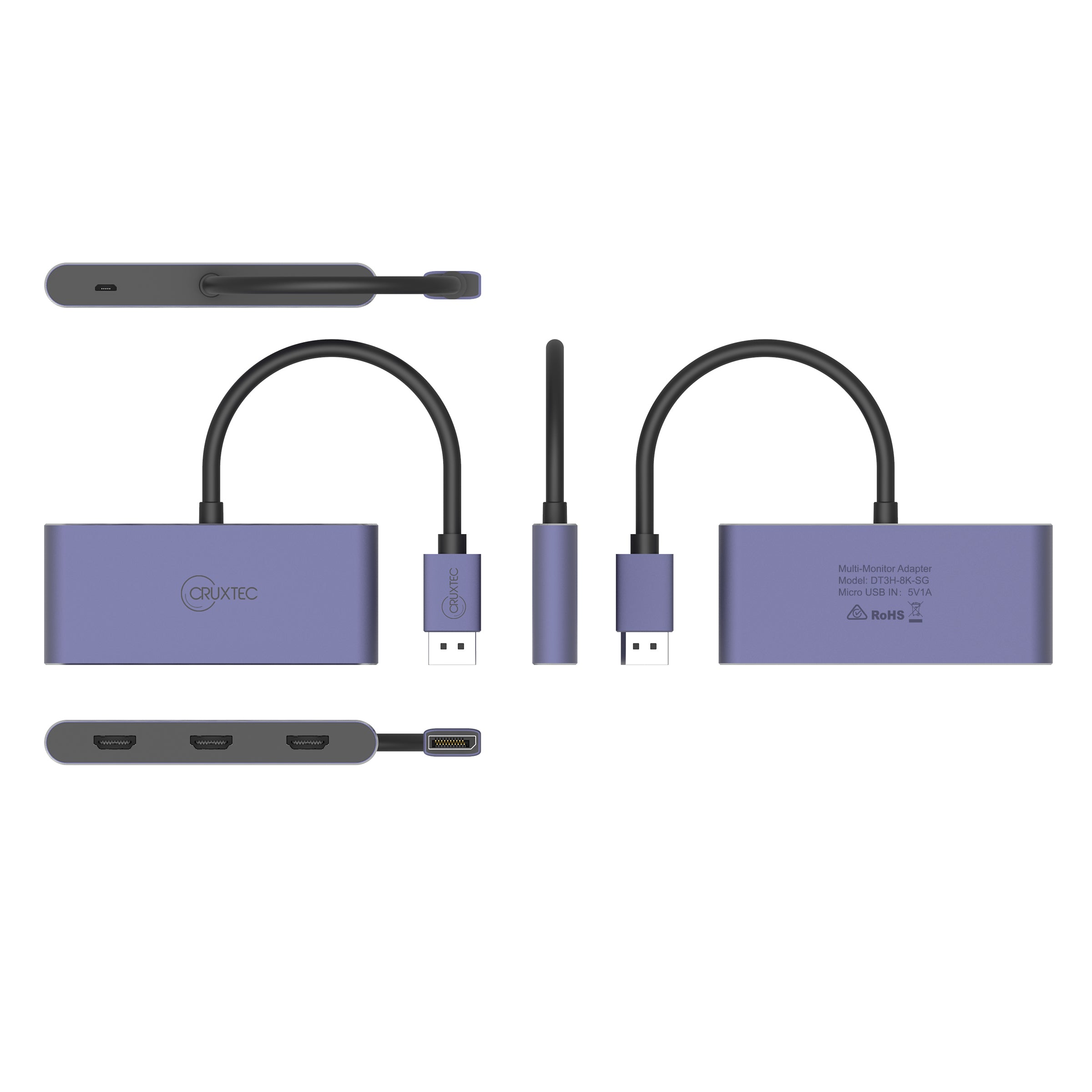

xCruxtec DT3H-8K-SG is a DisplayPort to triple HDMI adapter. Single-display output supports up to 8K@60Hz; Windows dual-display mode supports up to 4K@120Hz and triple-display mode up to 4K@60Hz. Available modes depend on the host, operating system and displays; single-display limits do not apply to all outputs simultaneously.

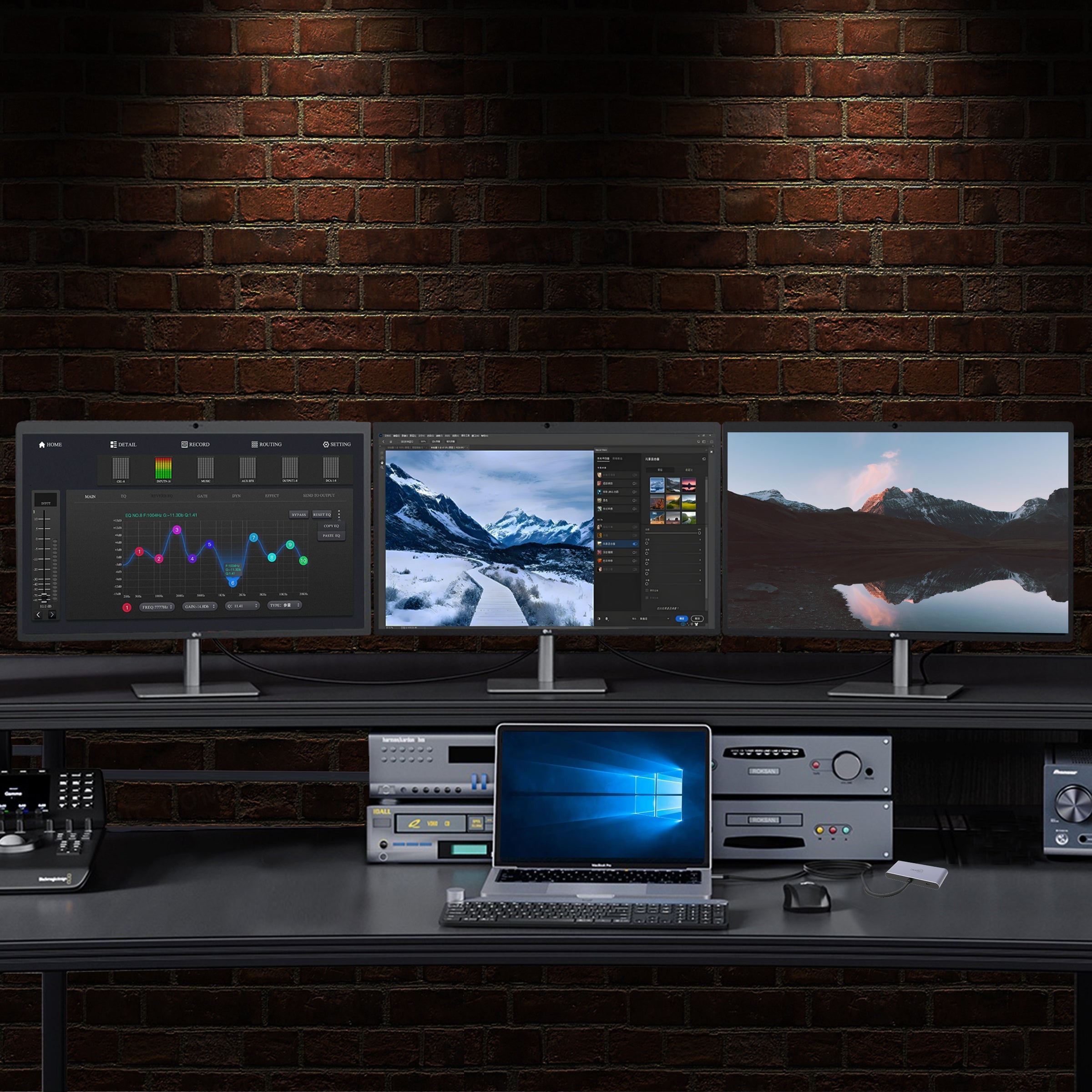

The Cruxtec splitter adapter connects a device to three external monitors simultaneously via a single DisplayPort.
Tech Specs
x
1 x DisplayPort 1.4 input for host connection.

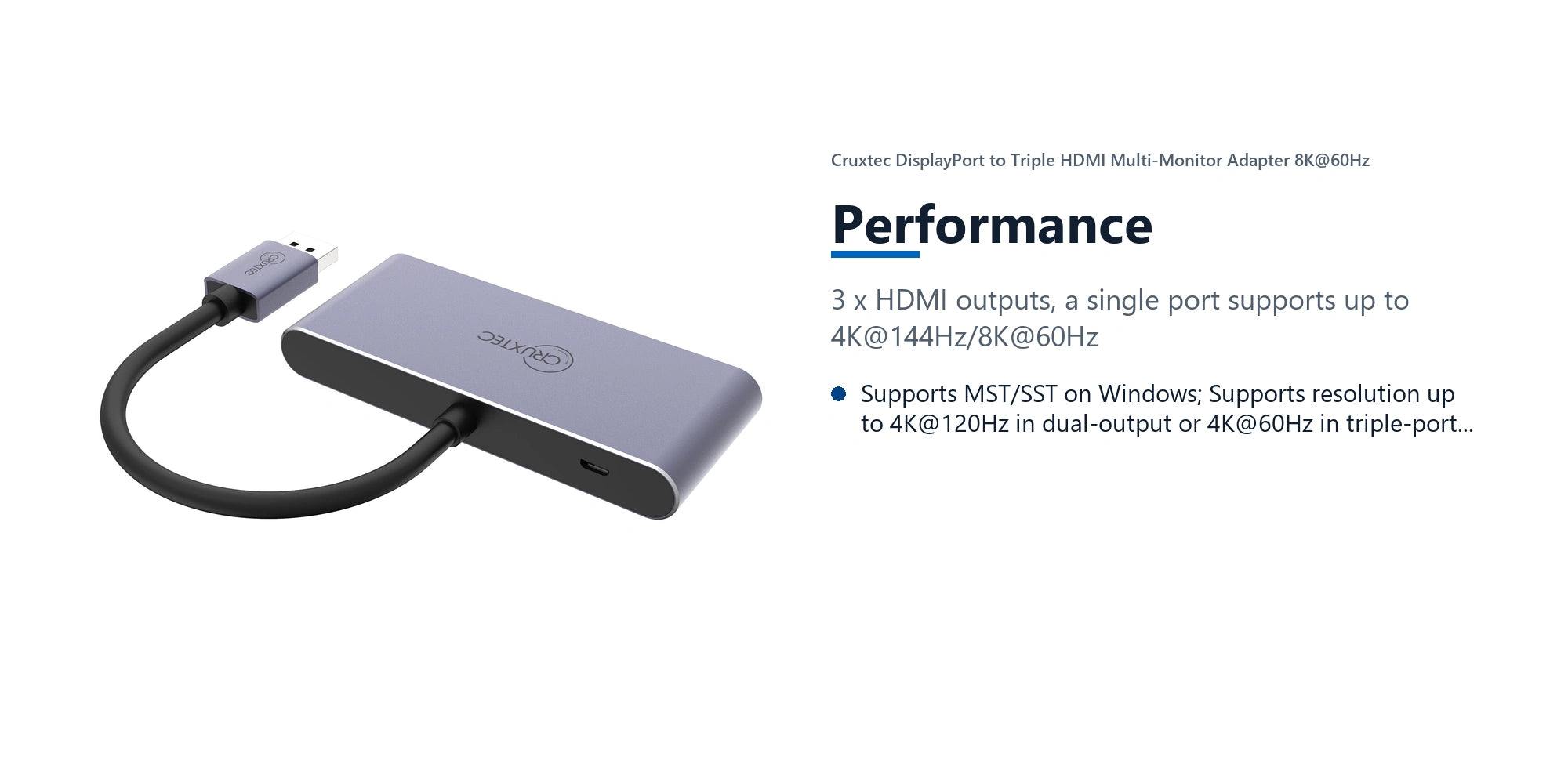

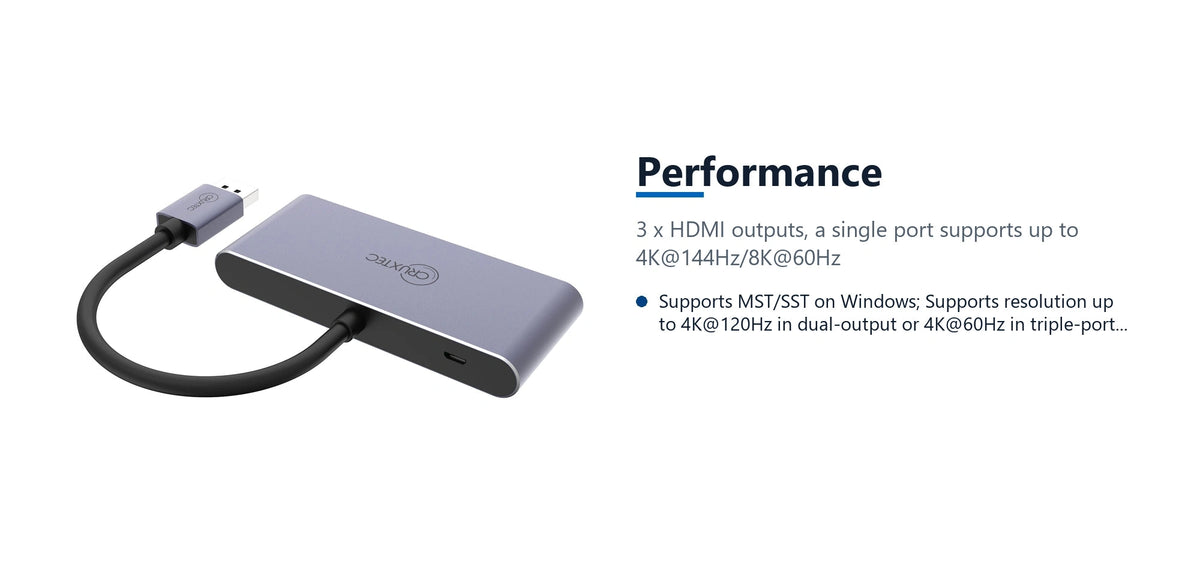

3 x HDMI outputs: single-display mode supports up to 4K@144Hz / 8K@60Hz.

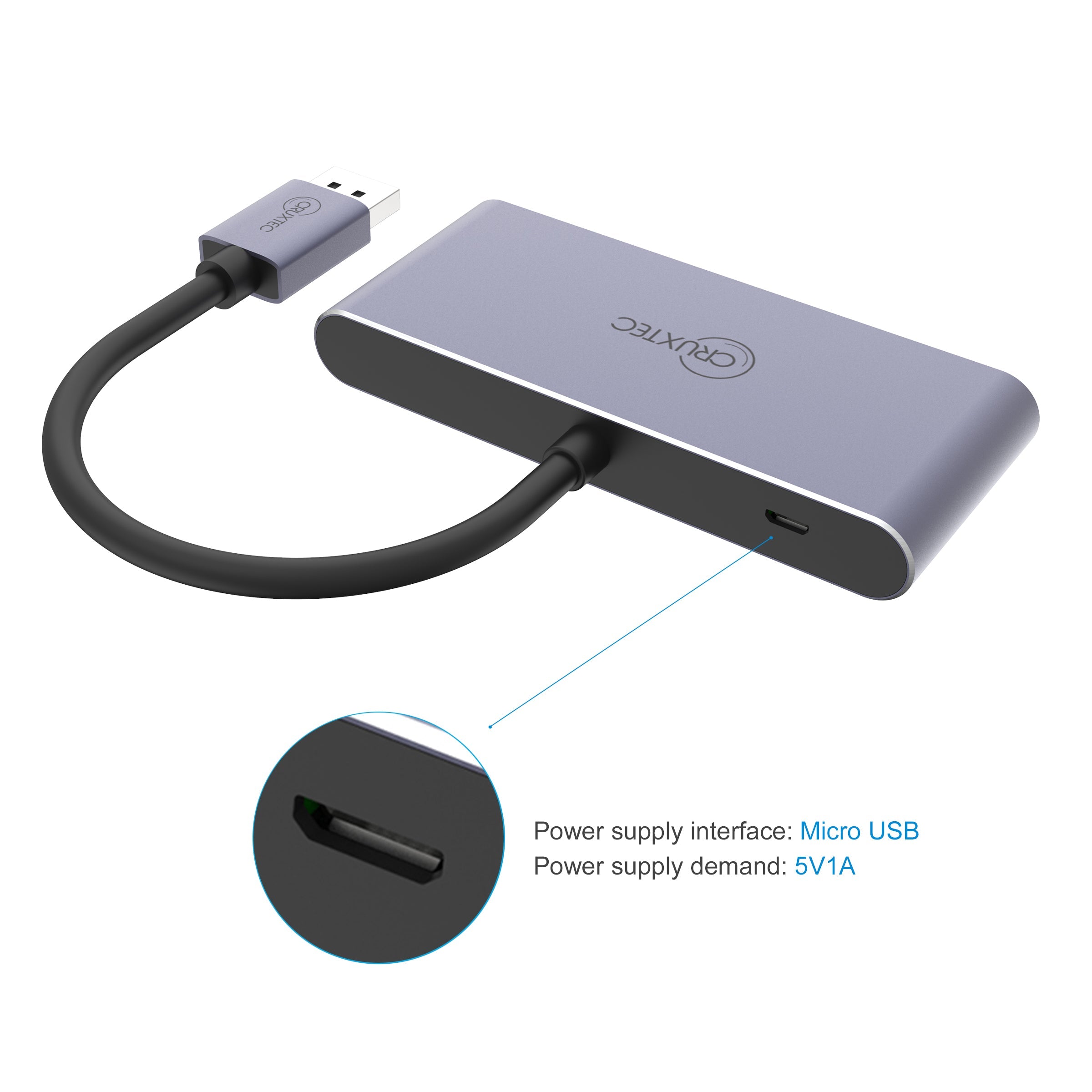

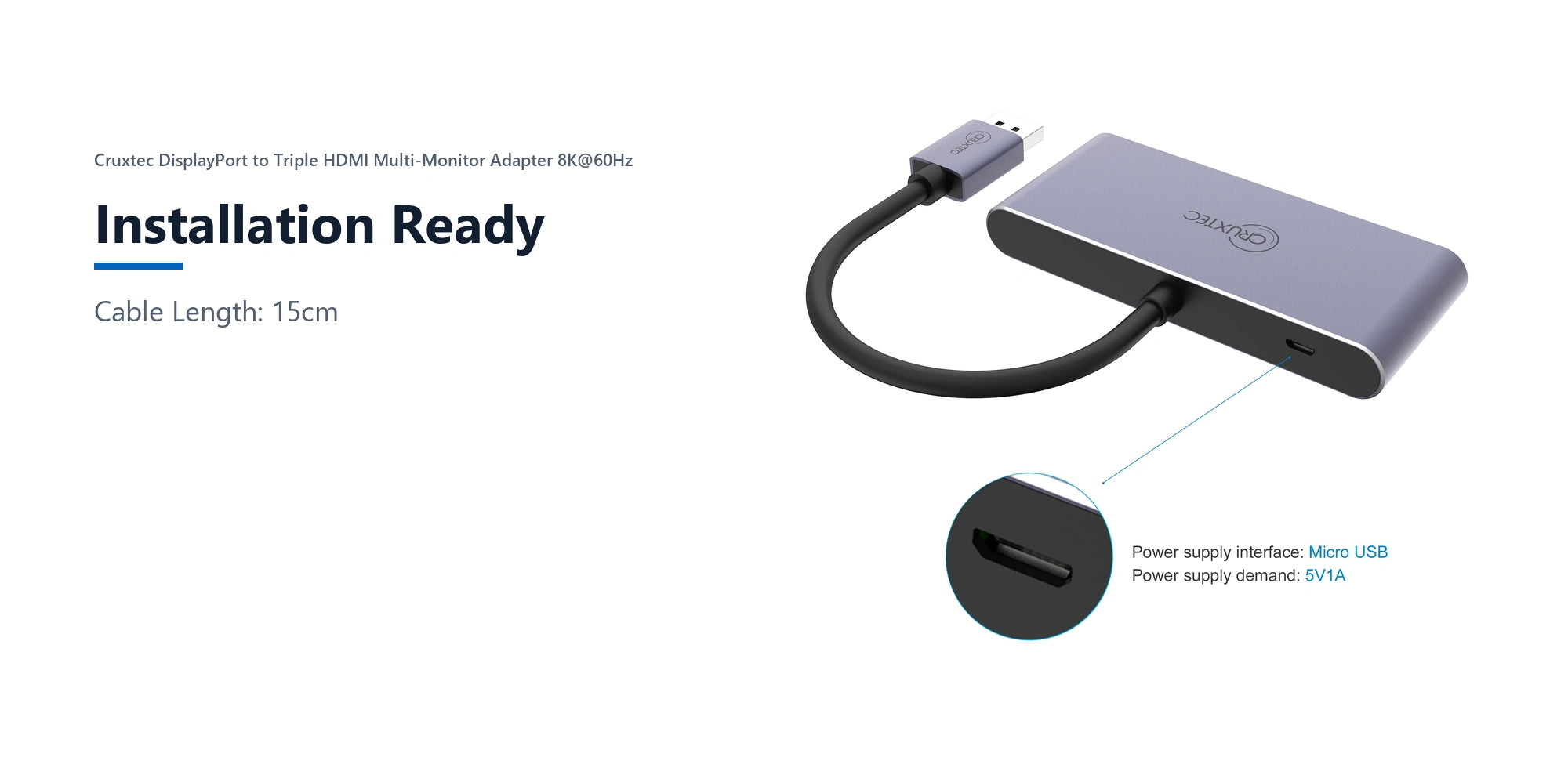

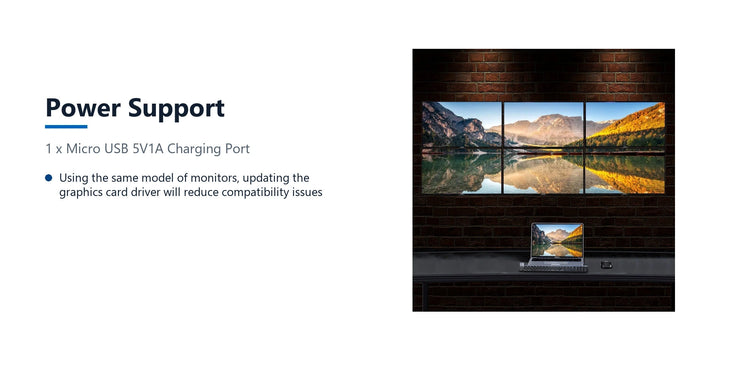

1 x Micro USB 5V1A Charging Port.
Supports Display Stream Compression (DSC).

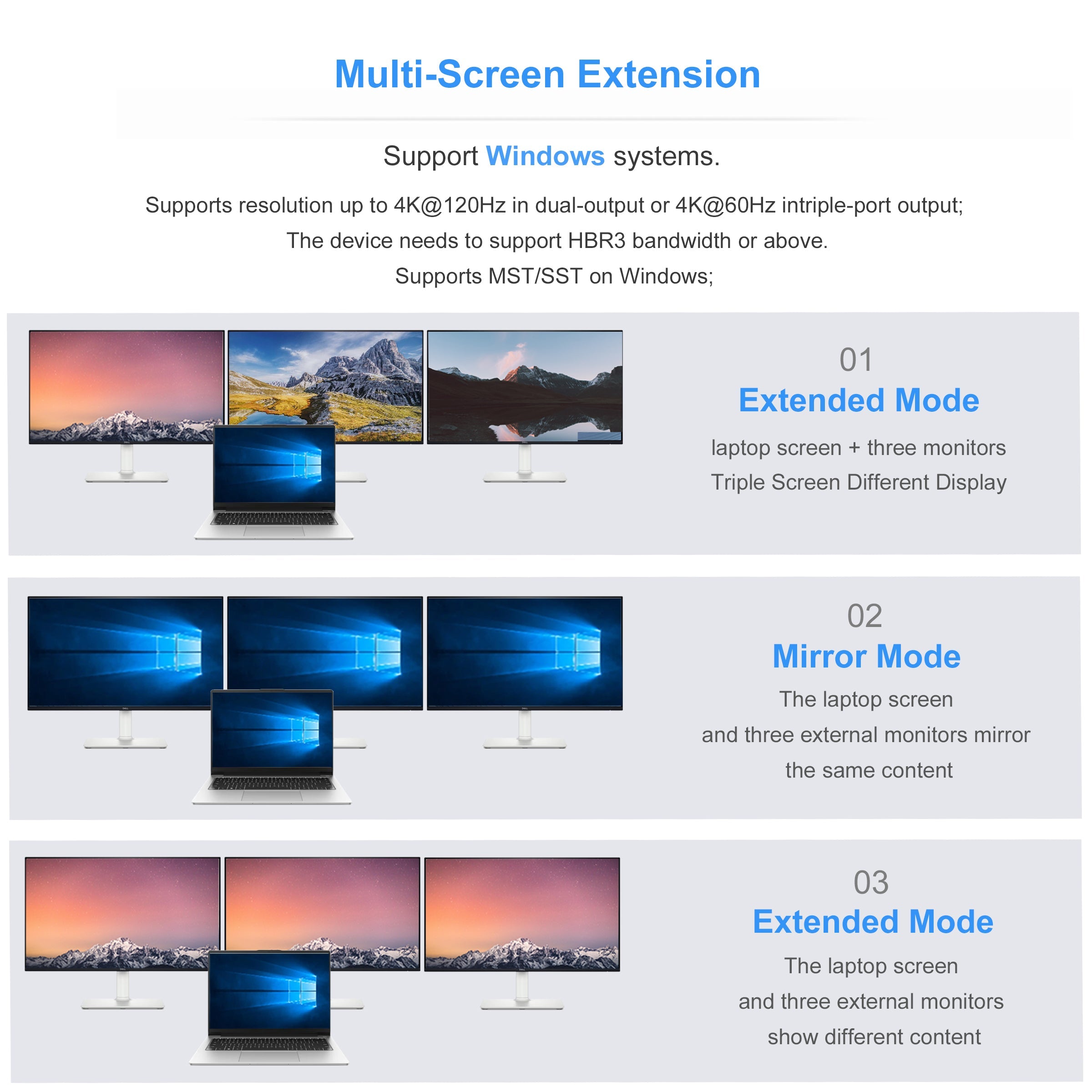

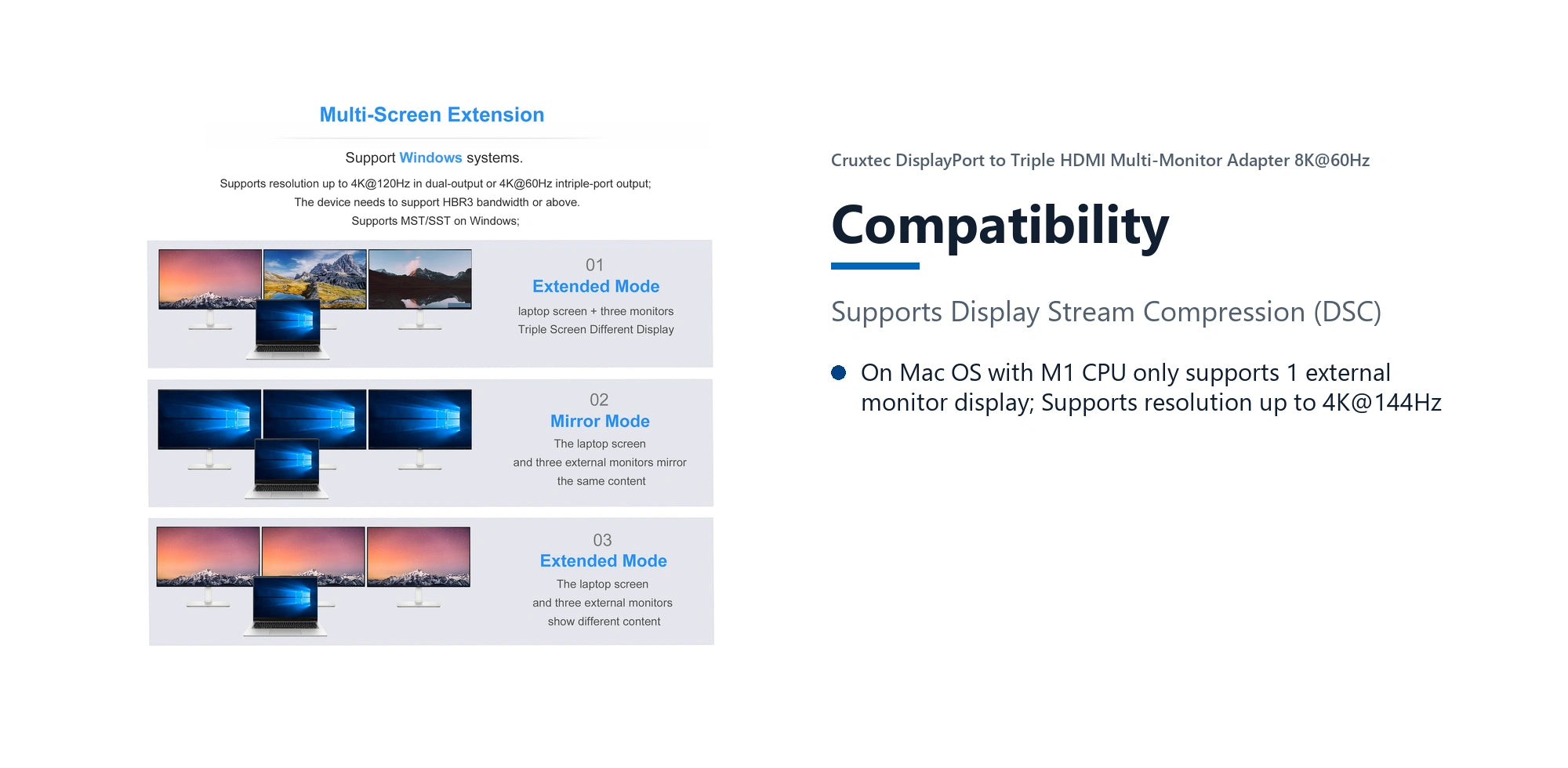

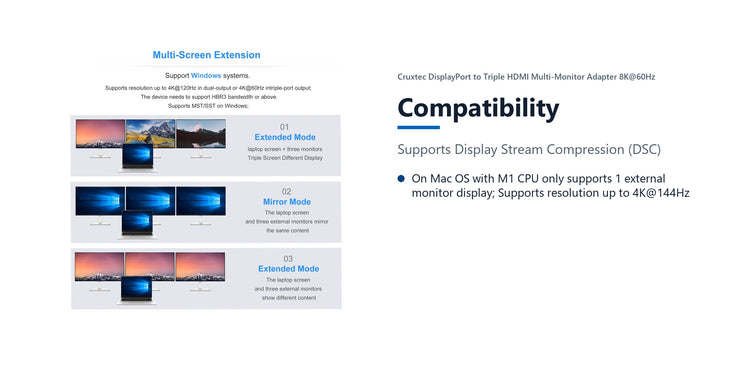

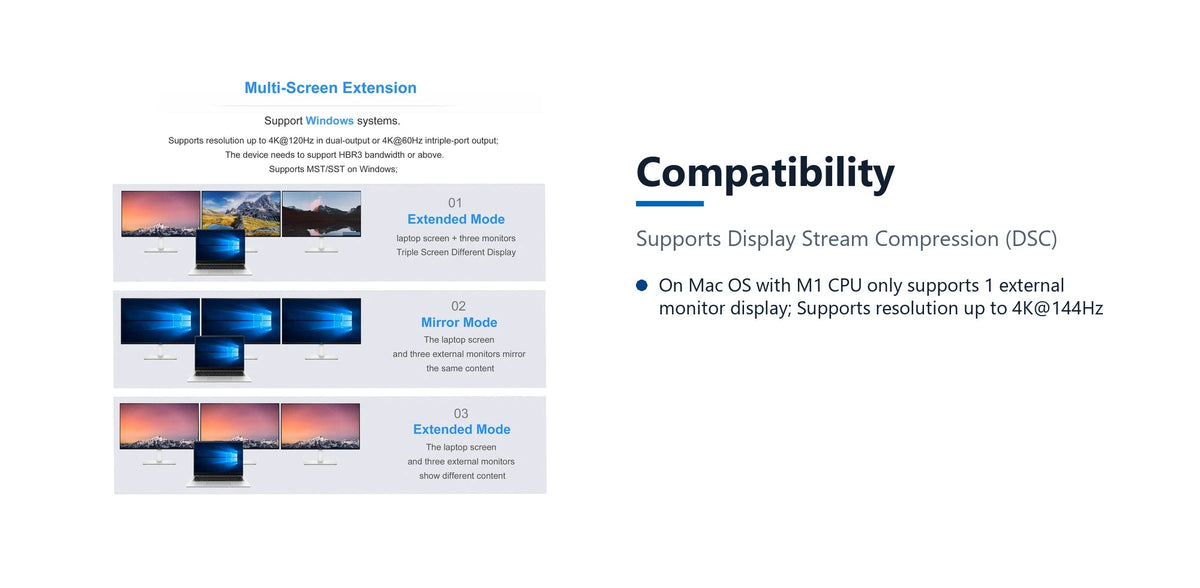

Windows MST/SST Multi-Display Modes: up to 4K@120Hz in dual-output or 4K@60Hz in triple-port output; The device needs to support HBR3 bandwidth or above.

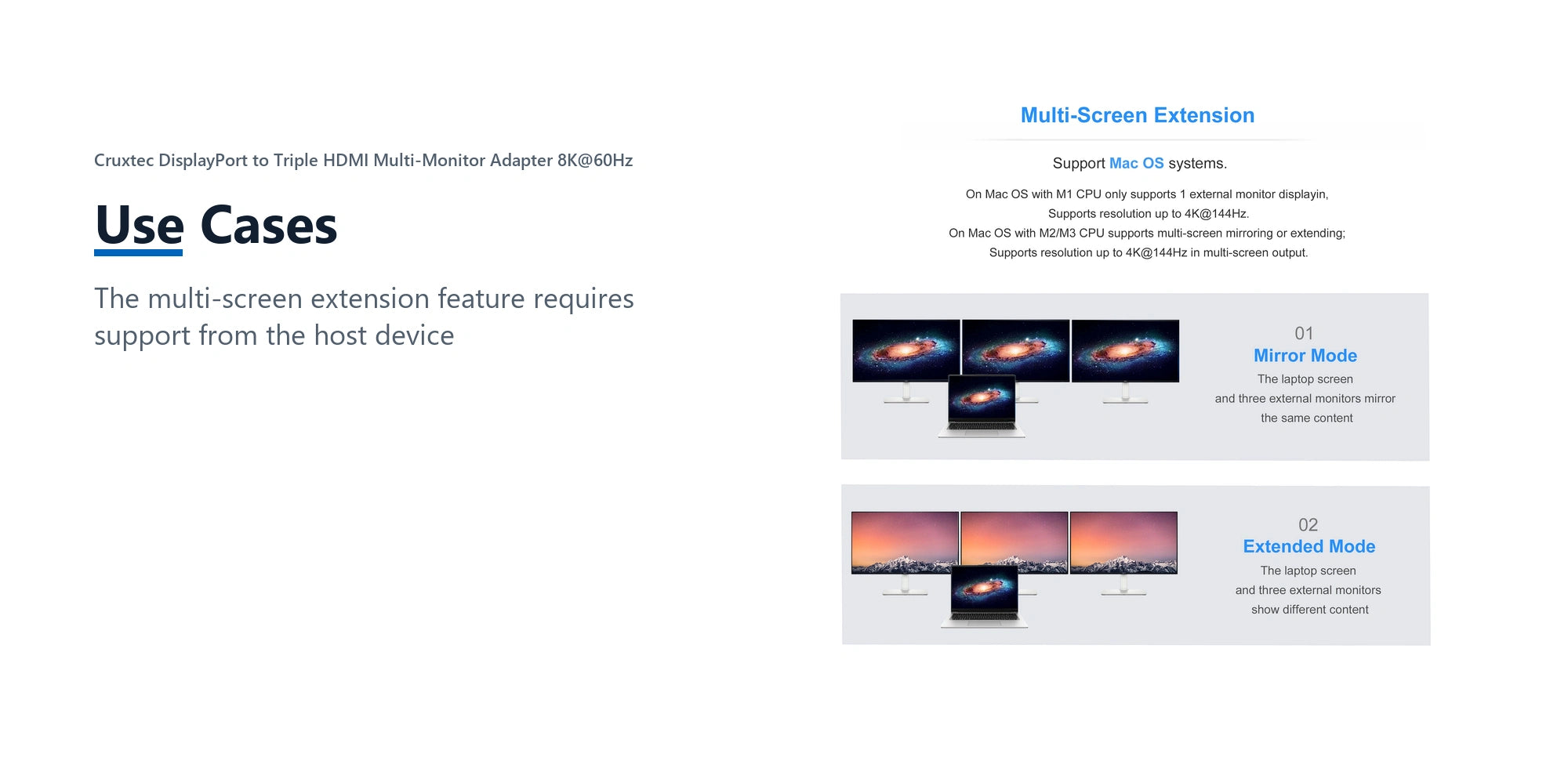

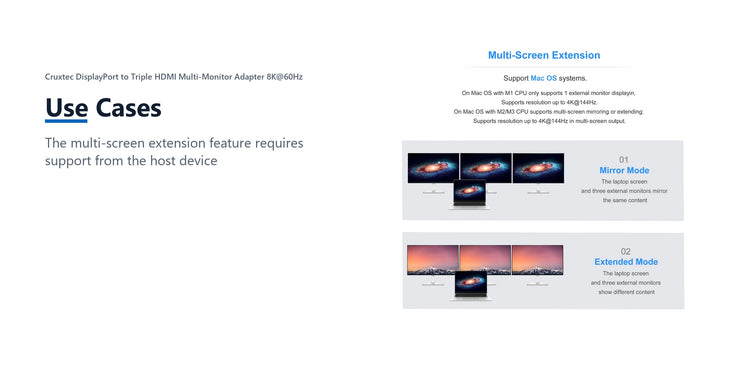

The multi-screen extension feature requires support from the host device.
Chip solution: Realtek.
Cable Length: 15cm.
Using the same model of monitors, updating the graphics card driver will reduce compatibility issues.
Display Mode Note: The maximum resolution in the product title refers to single-display mode, not simultaneous operation of all outputs at that resolution. Multi-display limits are listed separately above.

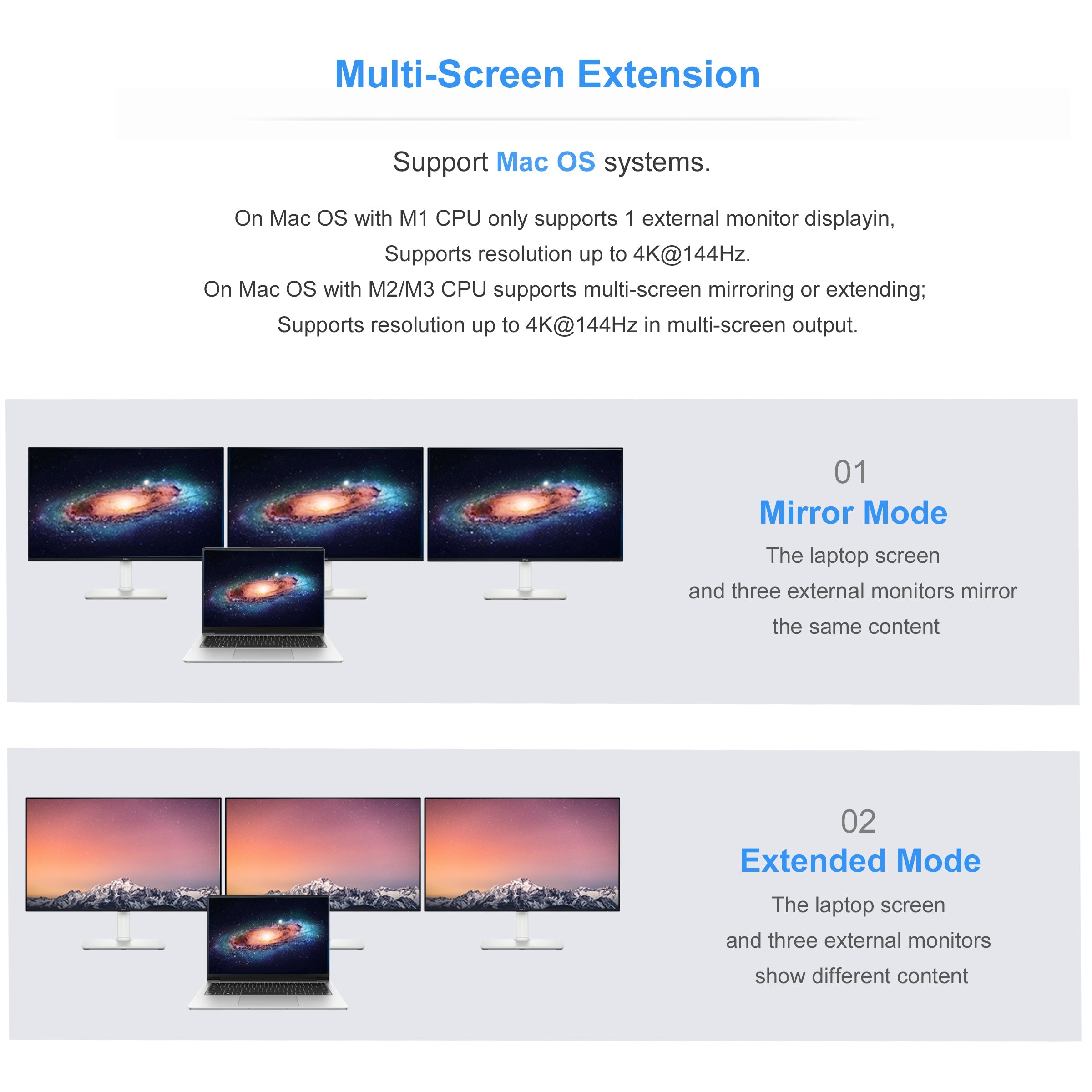

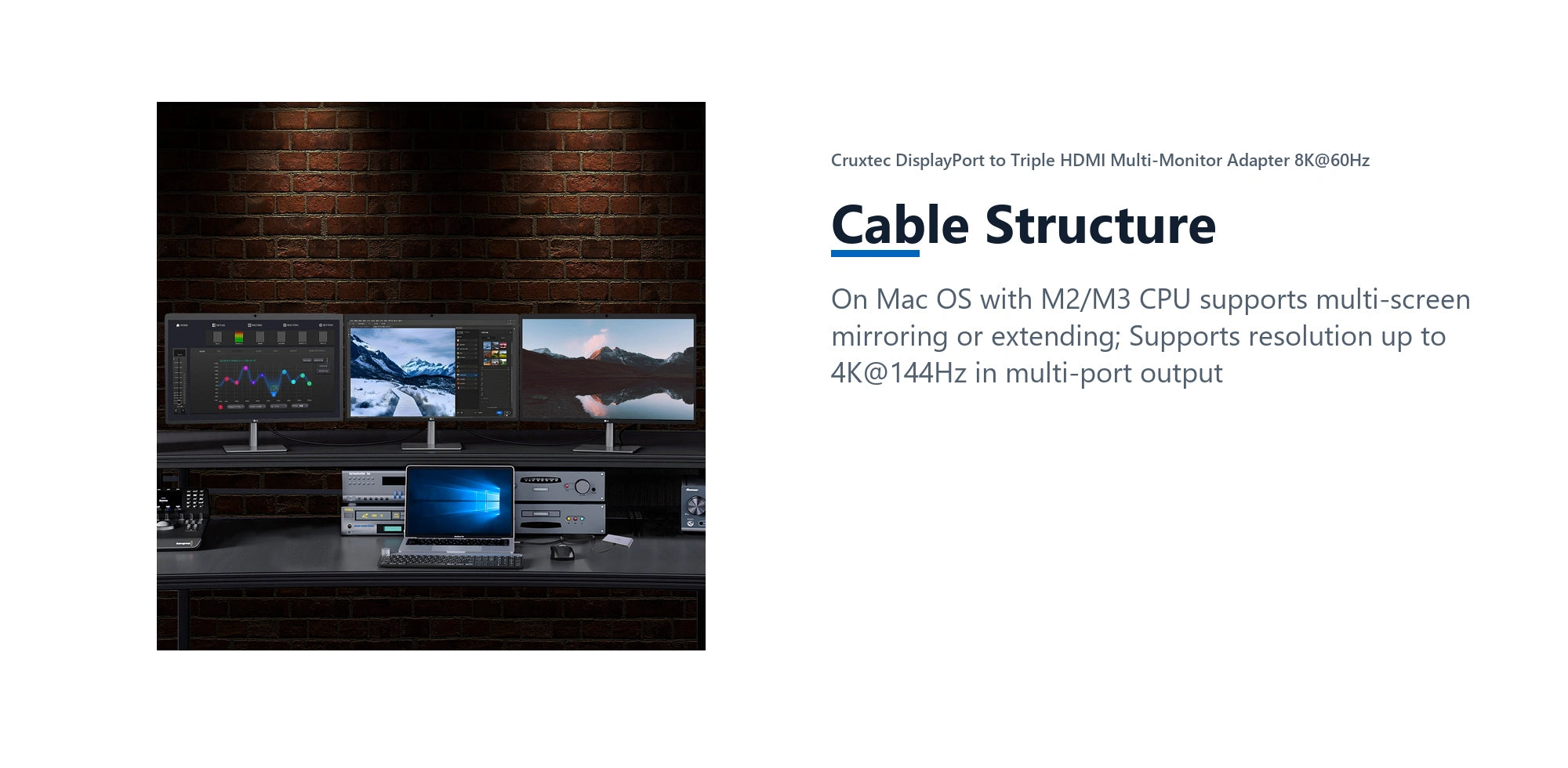

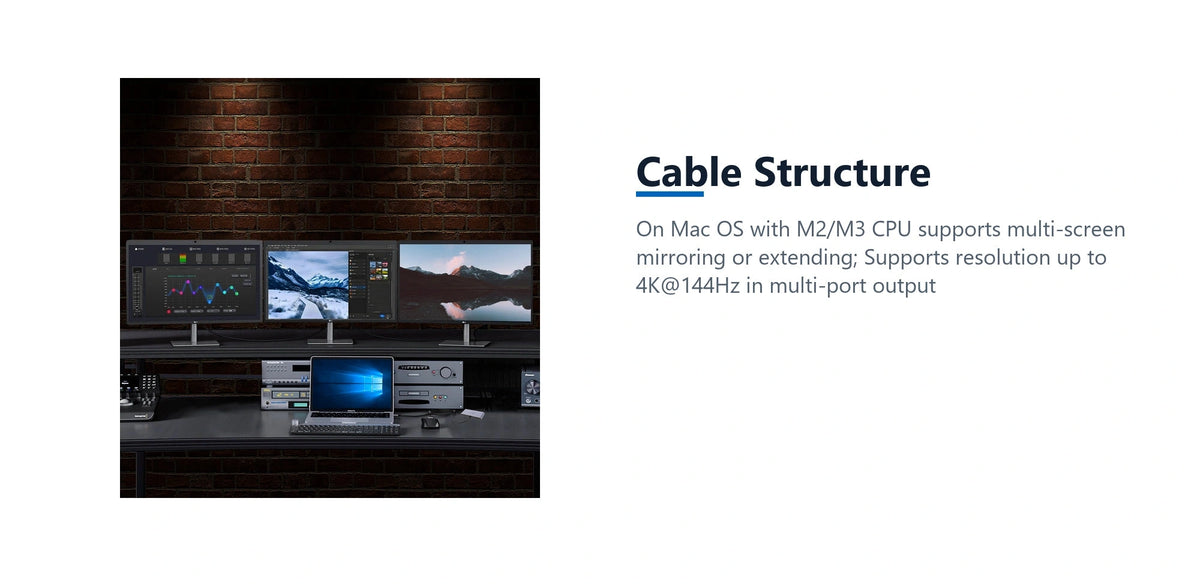

macOS Compatibility: External display count, mirroring and extended-desktop support depend on the exact Mac model, host connection and operating system. Do not assume the Windows MST multi-display modes apply to macOS; confirm the intended Mac and monitor configuration before purchase.
3 x HDMI outputs: single-display mode supports up to 4K@144Hz / 8K@60Hz.
1 x Micro USB 5V1A Charging Port.
Supports Display Stream Compression (DSC).
Windows MST/SST Multi-Display Modes: up to 4K@120Hz in dual-output or 4K@60Hz in triple-port output; The device needs to support HBR3 bandwidth or above.
The multi-screen extension feature requires support from the host device.
Chip solution: Realtek.
Cable Length: 15cm.
Using the same model of monitors, updating the graphics card driver will reduce compatibility issues.
Display Mode Note: The maximum resolution in the product title refers to single-display mode, not simultaneous operation of all outputs at that resolution. Multi-display limits are listed separately above.
macOS Compatibility: External display count, mirroring and extended-desktop support depend on the exact Mac model, host connection and operating system. Do not assume the Windows MST multi-display modes apply to macOS; confirm the intended Mac and monitor configuration before purchase.
