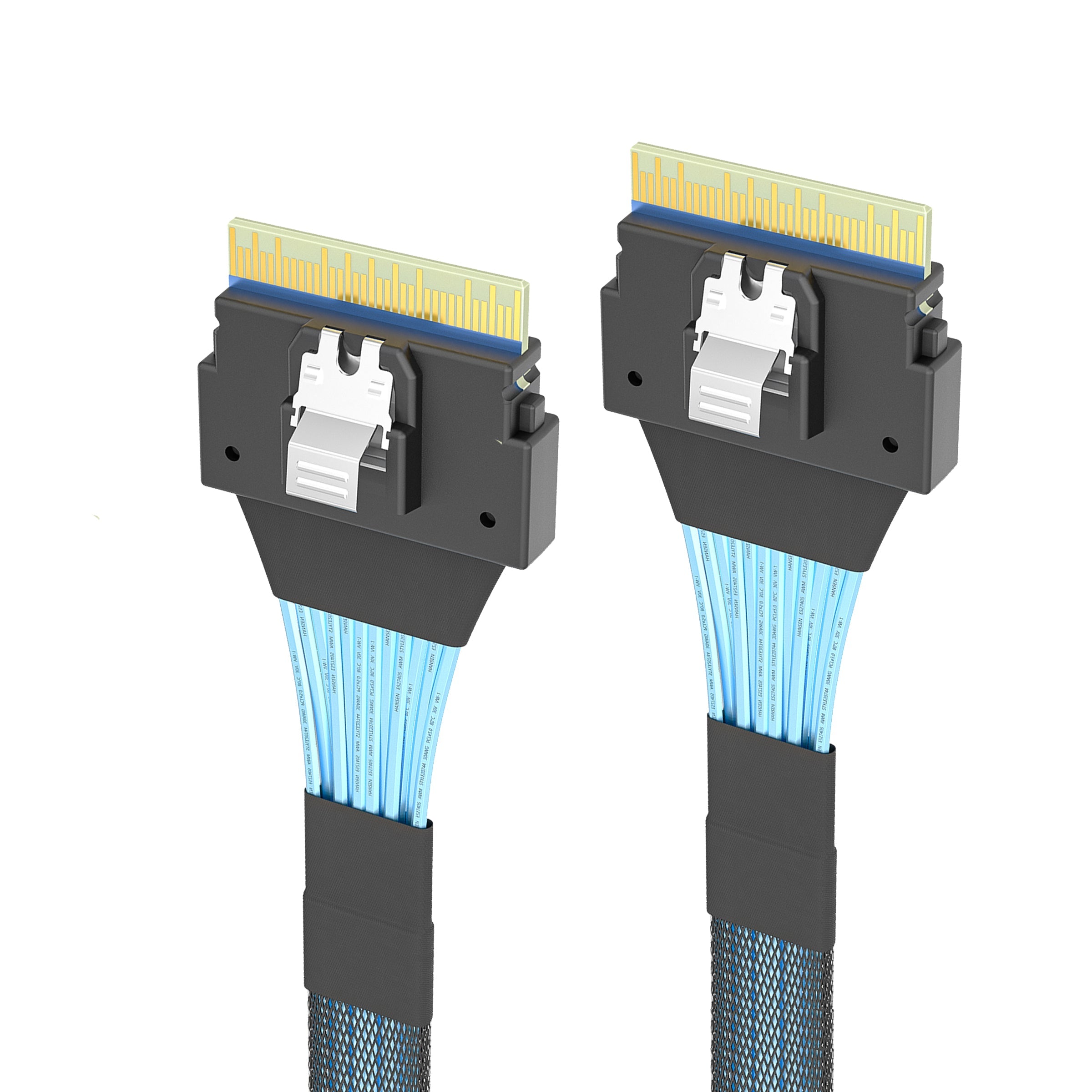

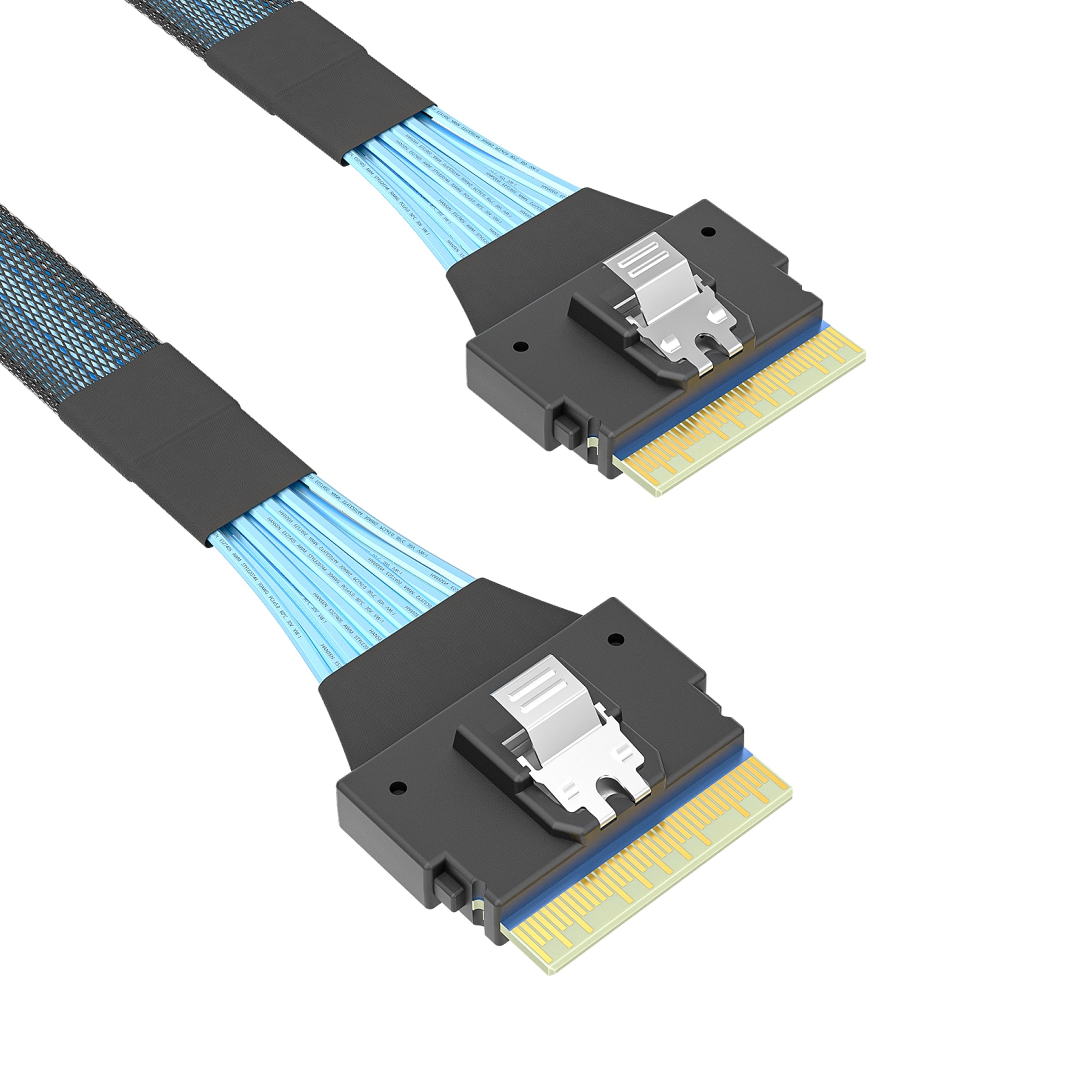

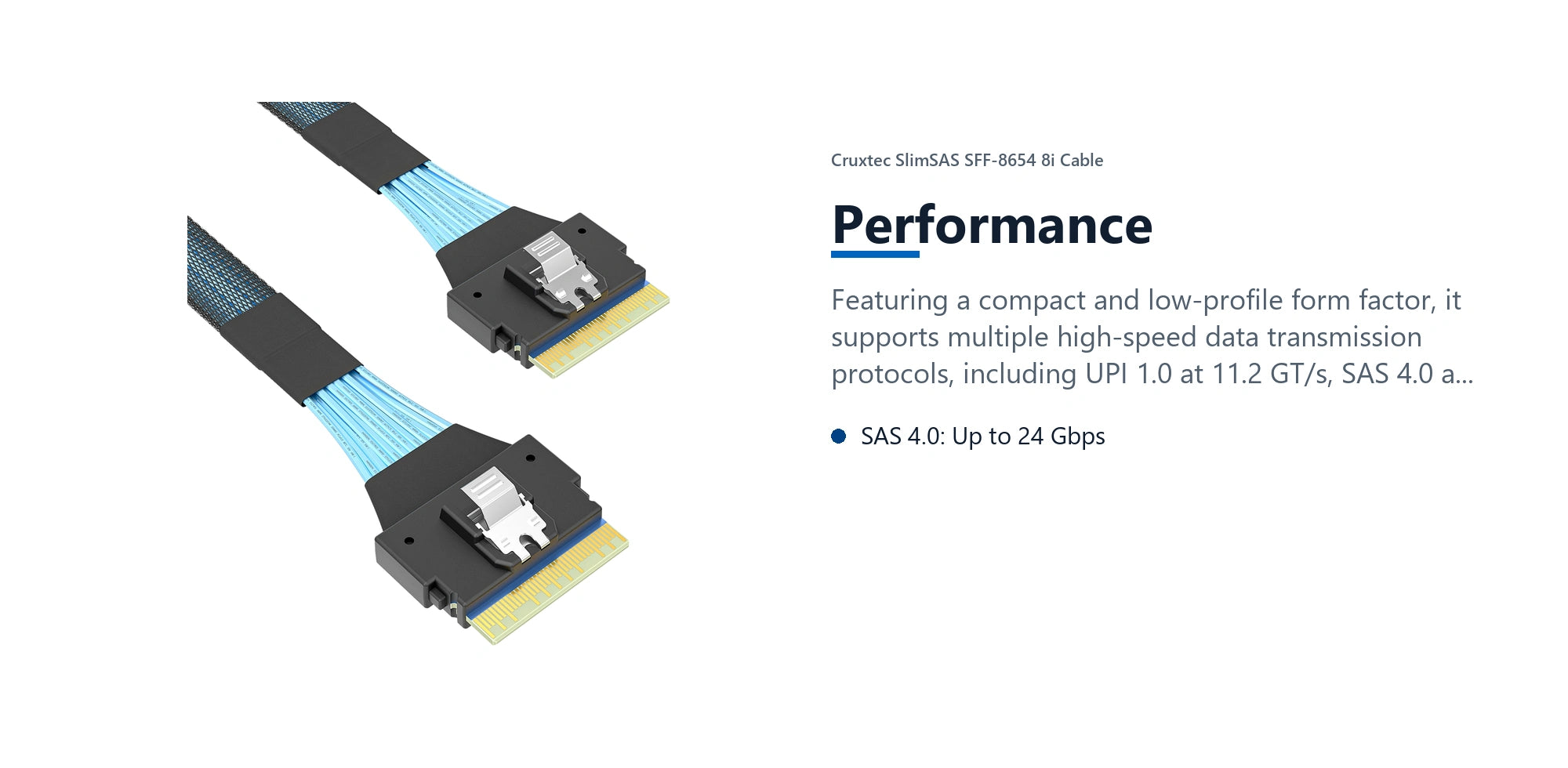

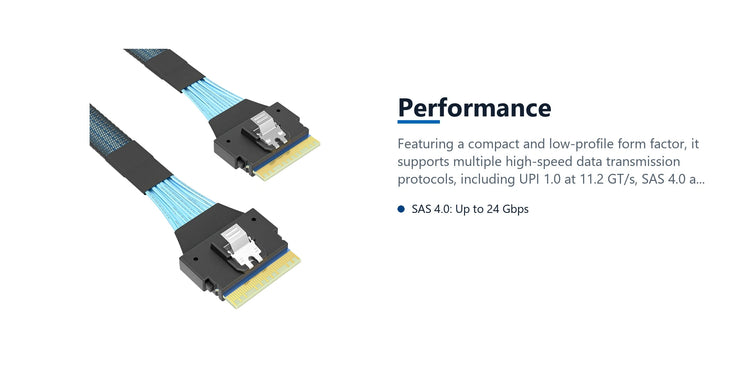

The SlimSAS SFF-8654 is a high-density connector designed for unshielded internal or external I/O applications, compliant with the Serial Attached SCSI (SAS) 4.0 standard. Featuring a compact and low-profile form factor, it supports multiple high-speed data transmission protocols, including UPI 1.0 at 11.2 GT/s, SAS 4.0 at 24 Gbps, PCIe 4.0 at 16 GT/s, and OpenCAPI at 25 Gbps. It is engineered for versatile component integration and optimized for high-performance server and data center environments.
1) 0 and SlimSAS SFF-8654 Standards Application Fields: Servers, Data Storage Systems, Workstations Data Rate Support: UPI
2) 0: Up to
3) 2 GT/s per lane SAS
4) 0: Up to 24 Gbps OpenCAPI: Up to 25 Gbps PCIe
5) 0: Up to 16 GT/s Mating Force: Max.

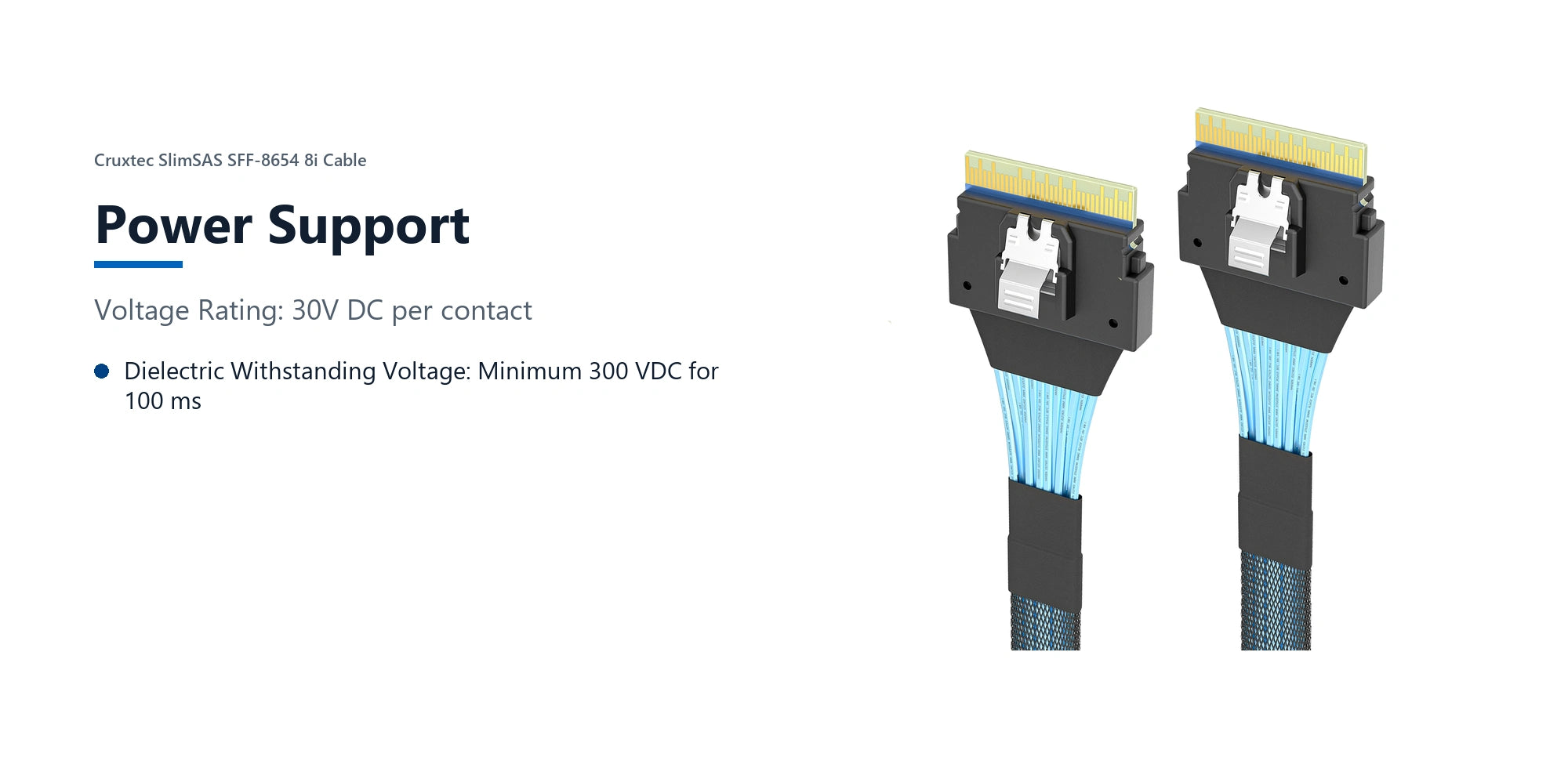

6) 5 N Unmating Force: Max. 49 N Durability Rating: Minimum 250 mating cycles Voltage Rating: 30V DC per contact Dielectric Withstanding Voltage: Minimum 300 VDC for 100 ms Insulation Resistance: Minimum 10 MΩ between adjacent contacts Signal Integrity (Differential Impedance): 100 ±10% ohms Signal Integrity (Common Mode Impedance / Insertion Loss / Crosstalk): Conforms to SAS
7) 0 specifications
