Features
x1) Zinc alloy housing
2) Gold plated connectors
3) HDMI 8K 48Gbps, Maximum Resolution: 8K@60Hz / 4K@120Hz

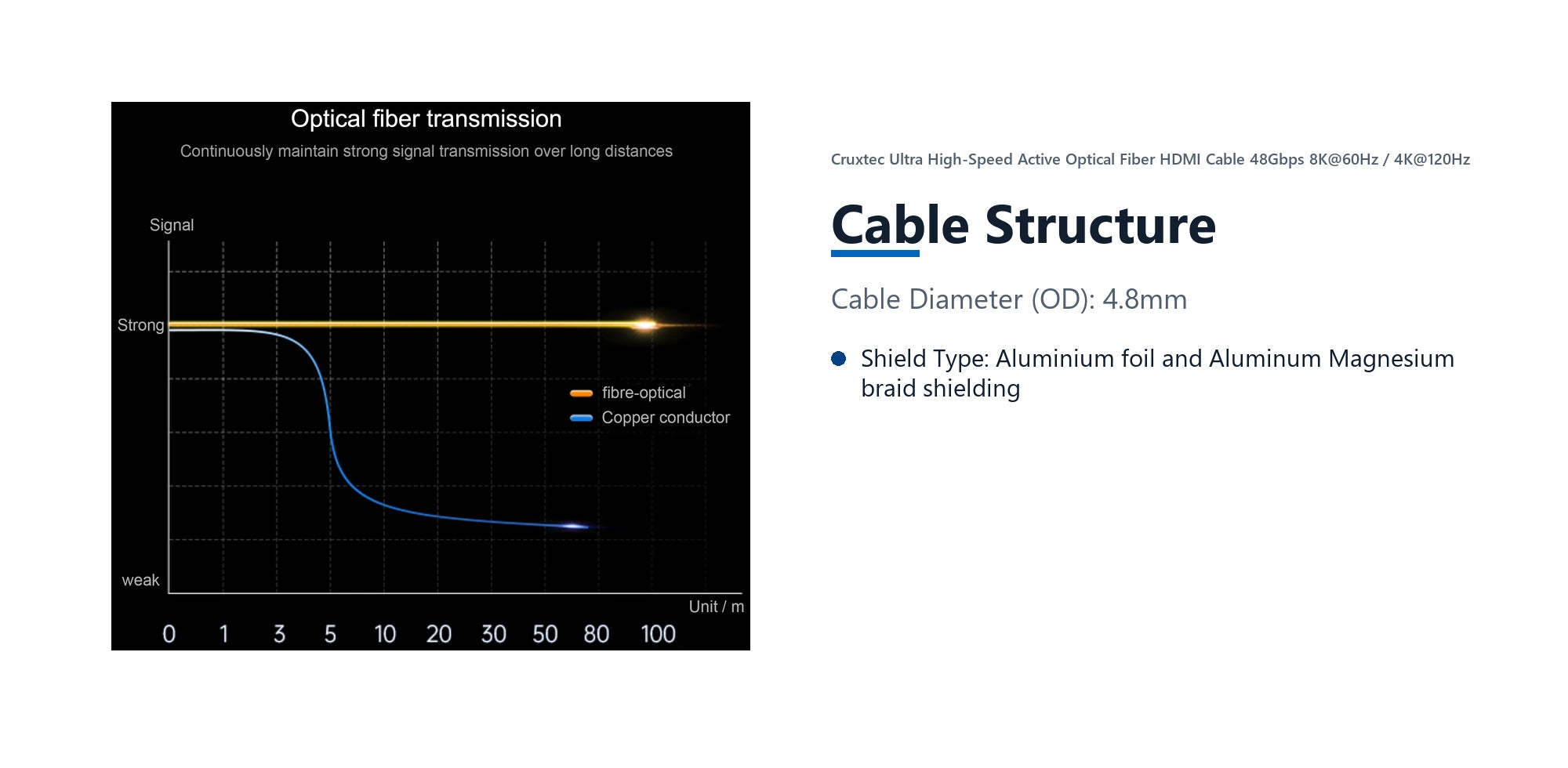

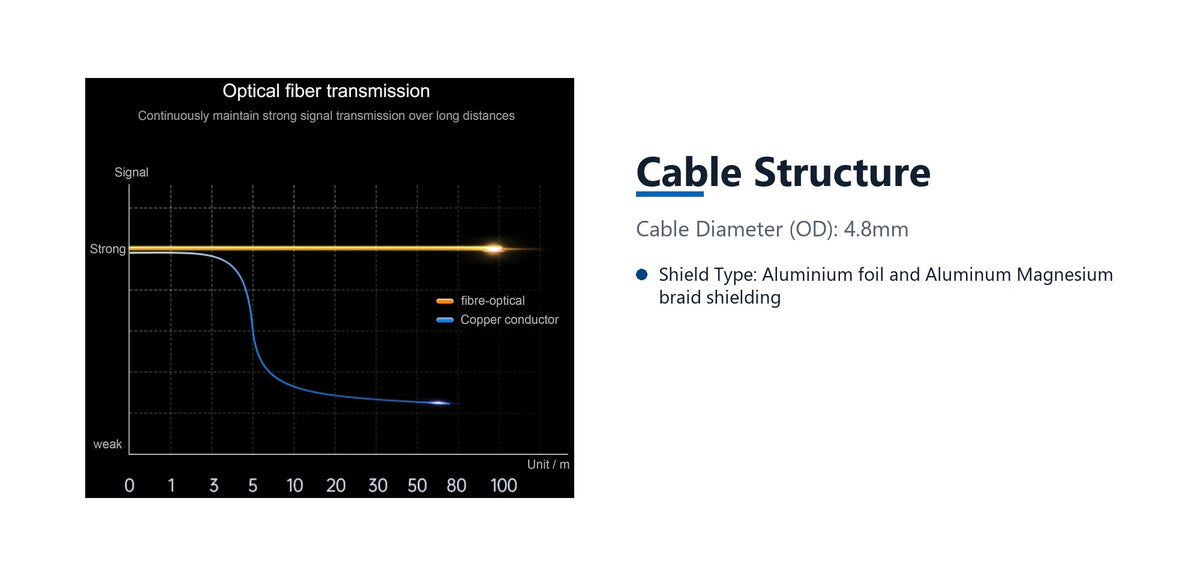

4) Optical Fibre Transmission Advantage, Strong flexibility ensures long-term crimp storage or wiring does not affect signal transmission
5) Breakthrough the length limit, non-destructive transmission without interference

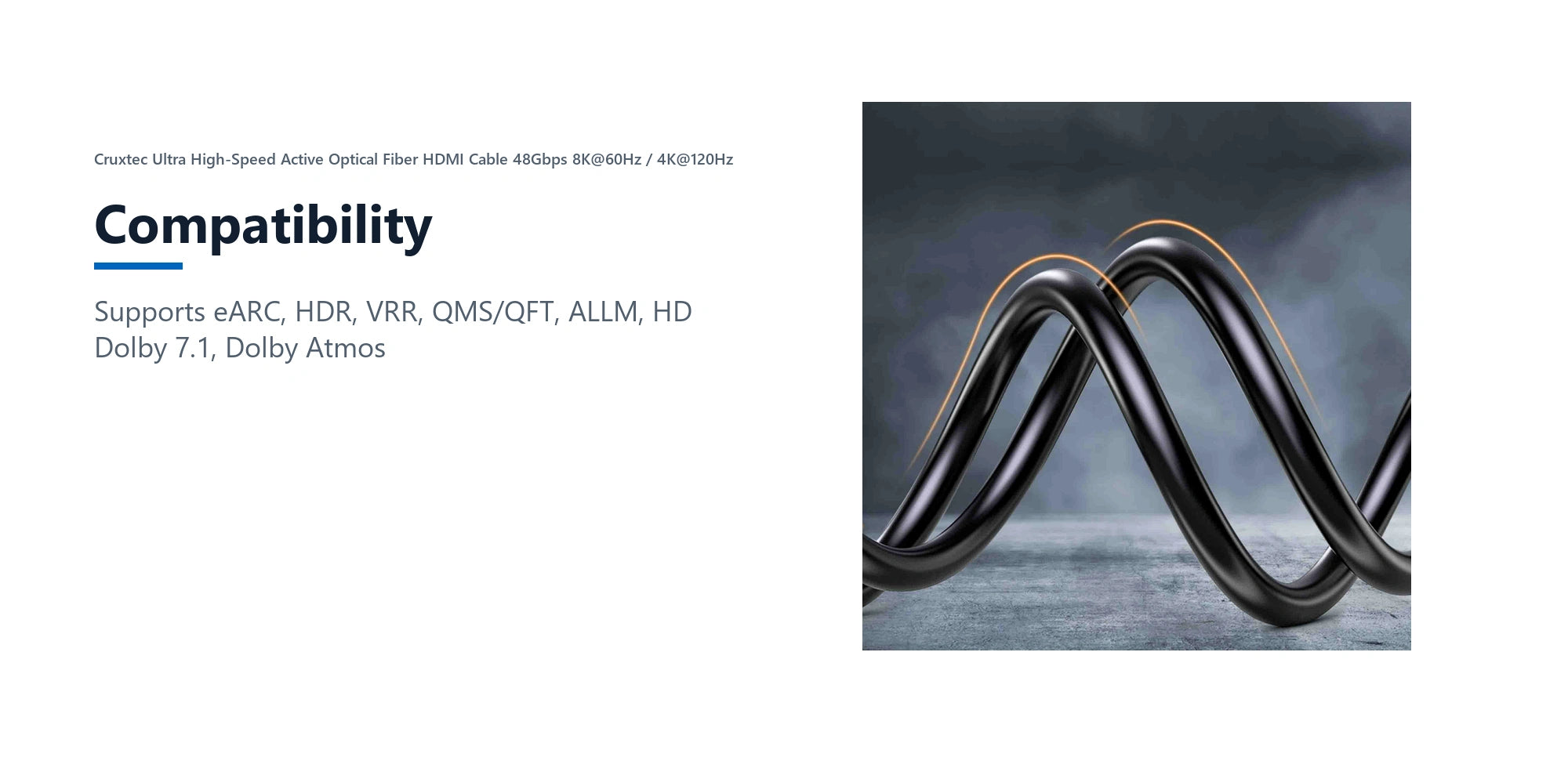

6) Supports eARC, HDR, VRR, QMS/QFT, ALLM, HD Dolby 7.1, Dolby Atmos
7) Kevlar is used as the central strength member on fibre optic cables, it provides additional protection for the fibres from the environment
For Video Formats, Pixel Encoding and DSC guidance, read our HS8K HDMI resolution guide.
Tech Specs
x
1) Pin plating: Gold
2) Bandwidth: HDMI 8K 48Gbps 3D
3) Maximum Resolution: 8K@60Hz / 4K@120Hz
4) Connectors: HDMI Male to Male (Modular copper bush reinforced)
5) Cable length: 50m
6) Colour: Black & Silver

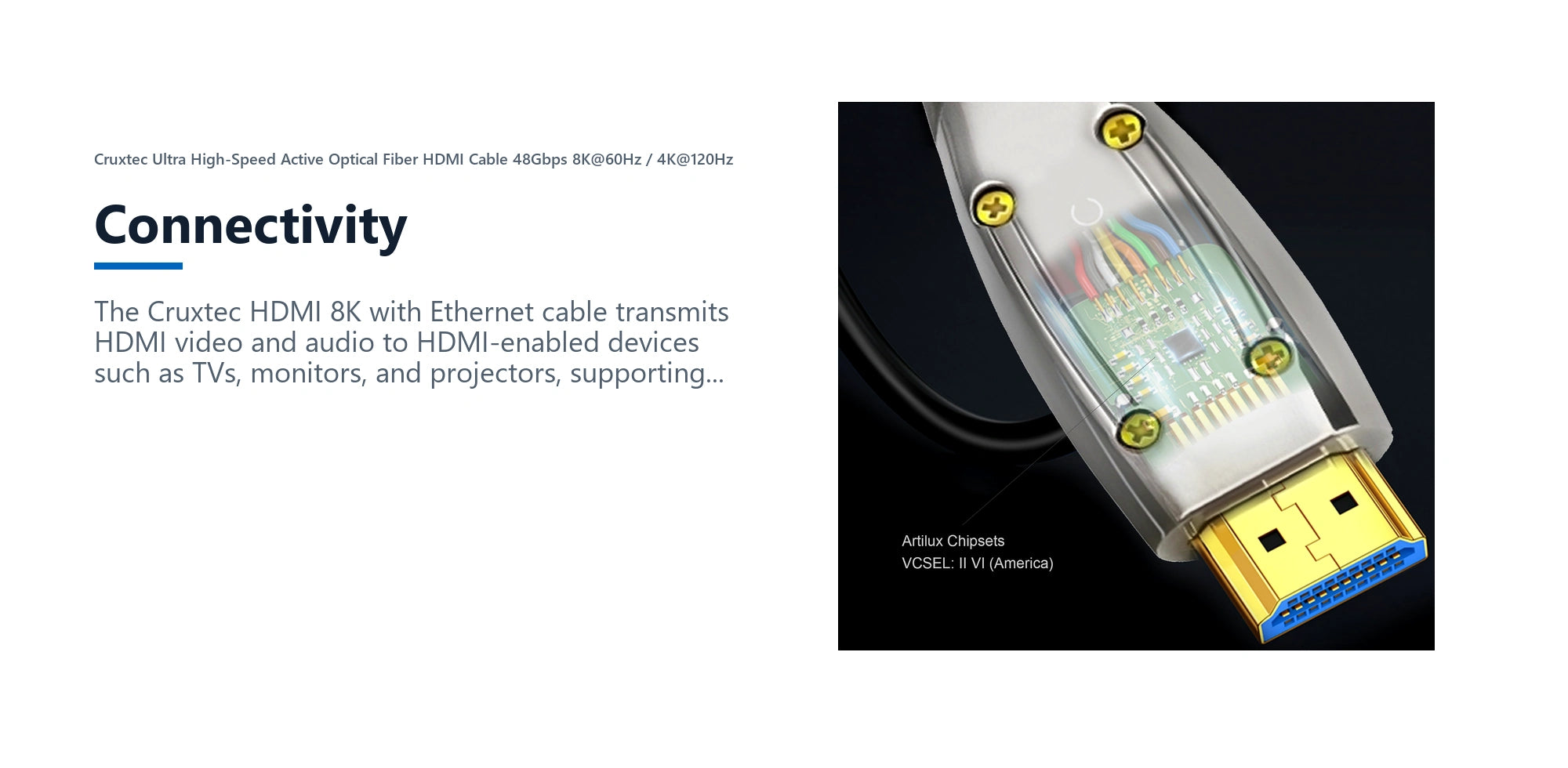

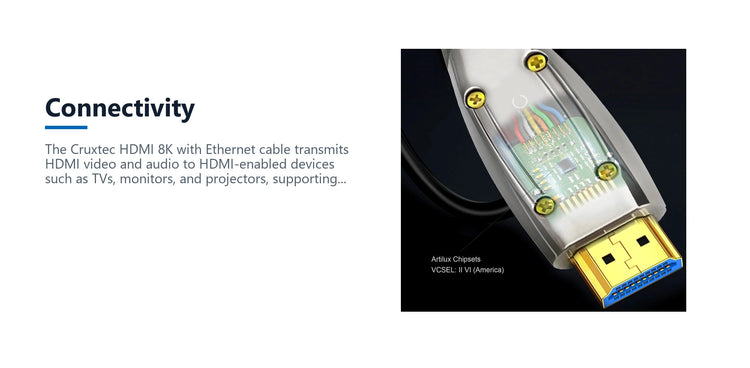

7) Chipsets: Artilux
8) VCSEL: II VI (America)
9) Cable Diameter (OD): 4.8mm
10) Power Consumption: 110mW
11) Shield Type: Aluminium foil and Aluminum Magnesium braid shielding

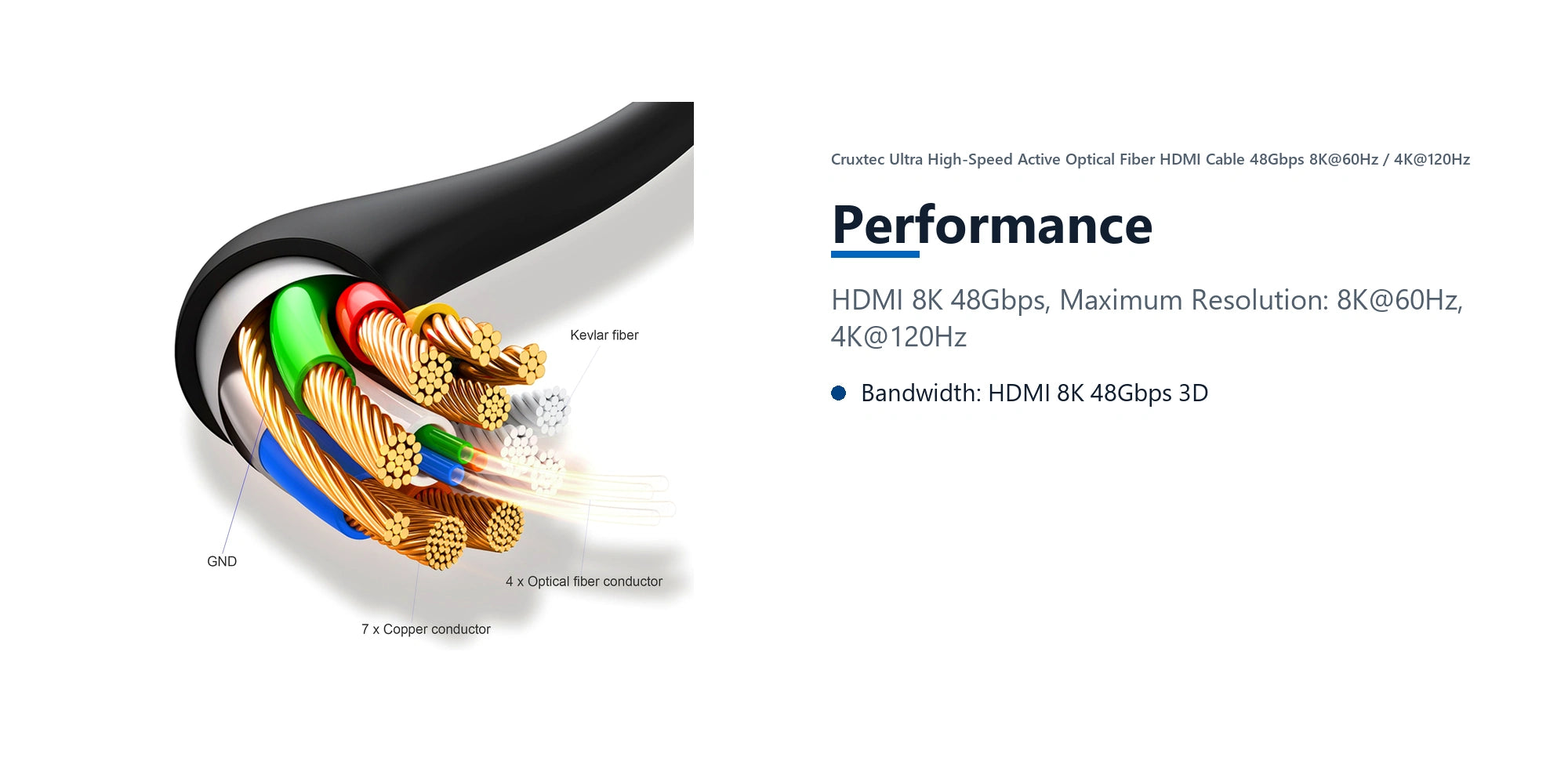

12) Conductor Type: 4core 50/125um MMF and 7core copper cable
13) Supports eARC
HDR
VRR
QMS/QFT
ALLM
HD Dolby 7.1
Dolby Atmos
2) Bandwidth: HDMI 8K 48Gbps 3D
3) Maximum Resolution: 8K@60Hz / 4K@120Hz
4) Connectors: HDMI Male to Male (Modular copper bush reinforced)
5) Cable length: 50m
6) Colour: Black & Silver
7) Chipsets: Artilux
8) VCSEL: II VI (America)
9) Cable Diameter (OD): 4.8mm
10) Power Consumption: 110mW
11) Shield Type: Aluminium foil and Aluminum Magnesium braid shielding
12) Conductor Type: 4core 50/125um MMF and 7core copper cable
13) Supports eARC
HDR
VRR
QMS/QFT
ALLM
HD Dolby 7.1
Dolby Atmos
