Features
x1) Expands the connectivity of your MacBook, Windows laptop or Chromebook through a single USB-C connection.

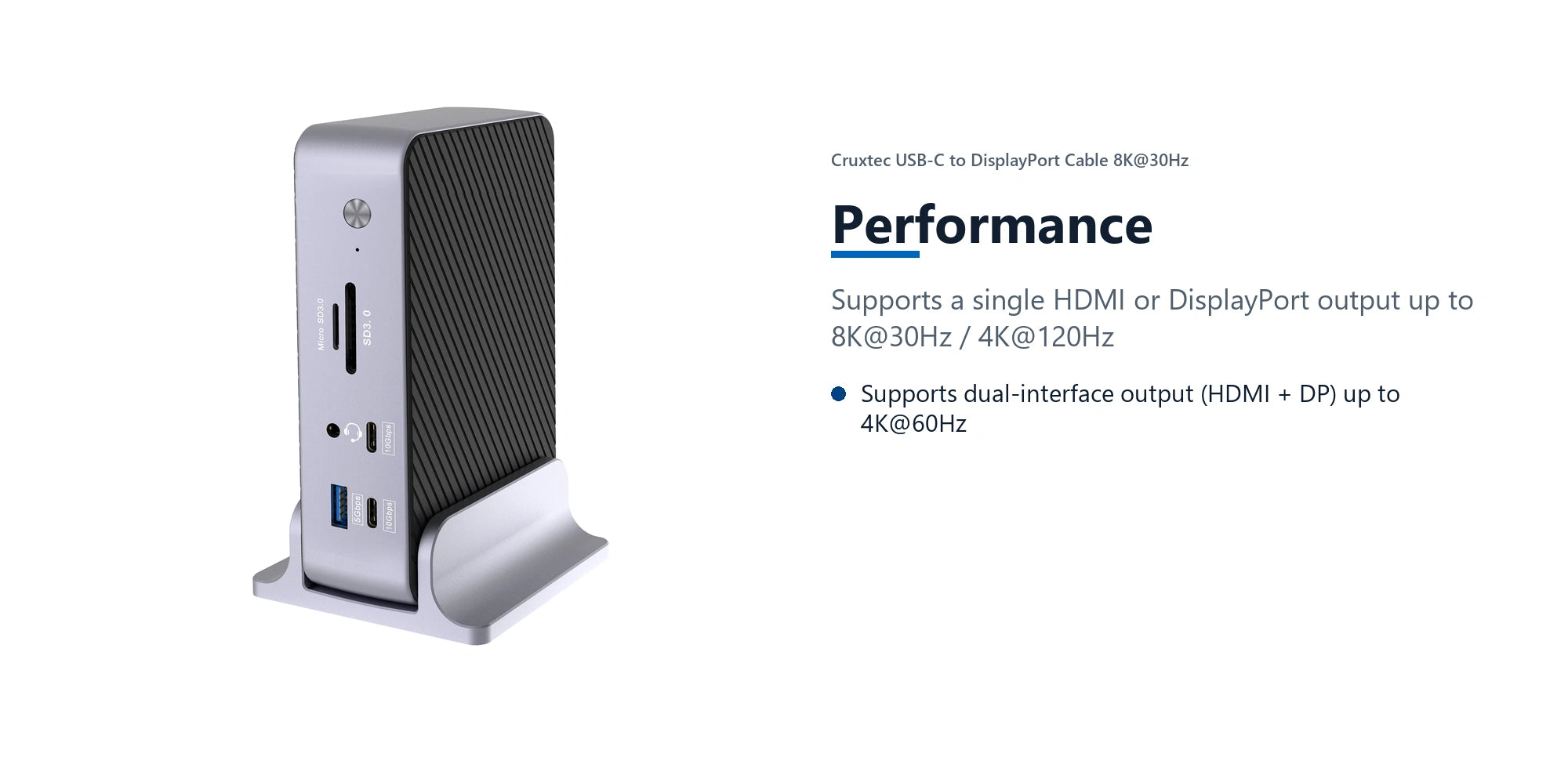

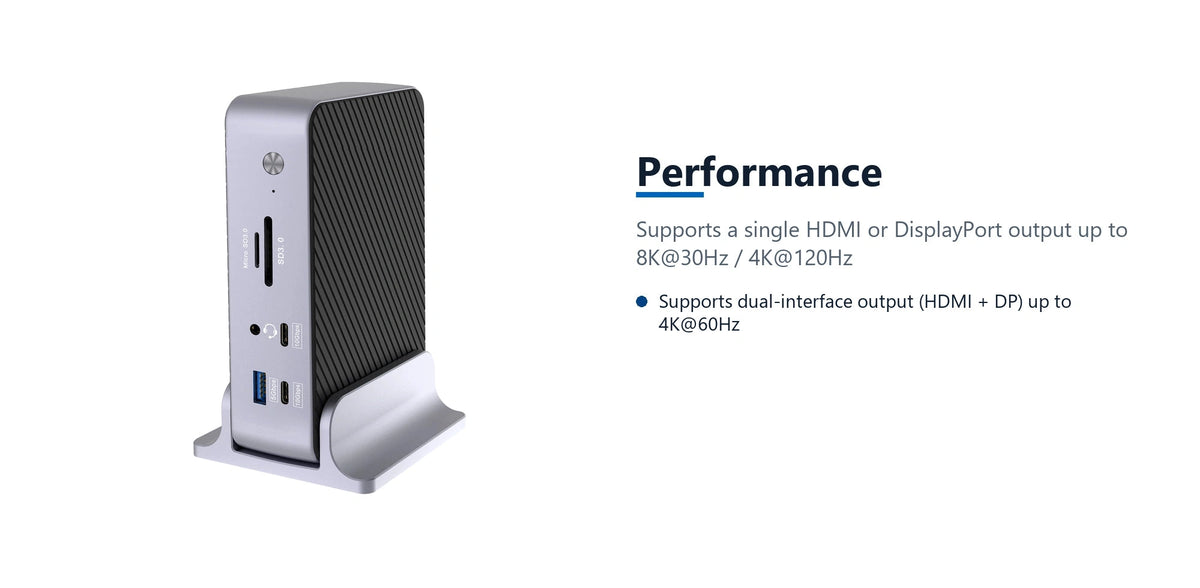

2) Supports a single HDMI or DisplayPort output up to 8K@30Hz / 4K@120Hz.
3) Supports dual-interface output (HDMI + DP) up to 4K@60Hz

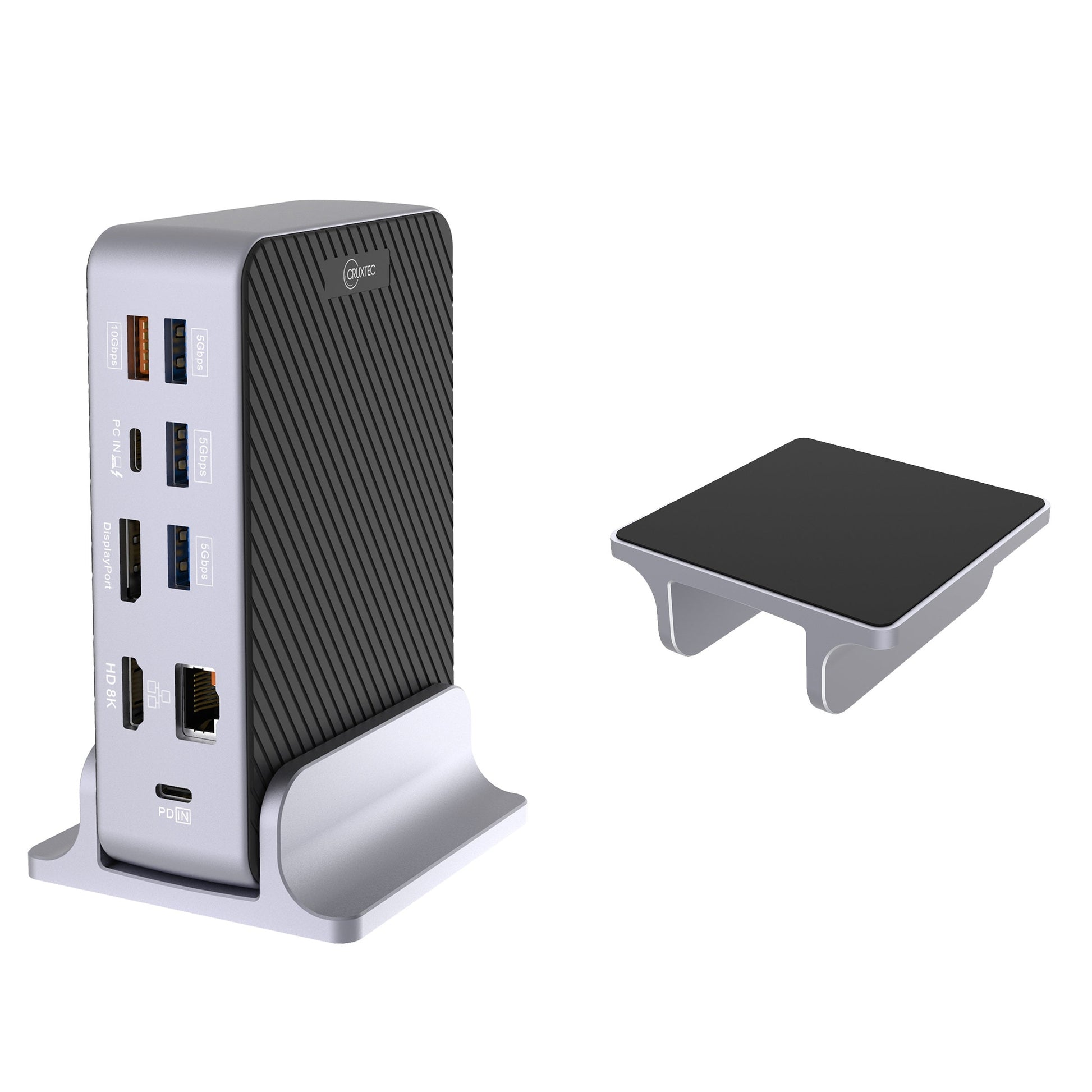

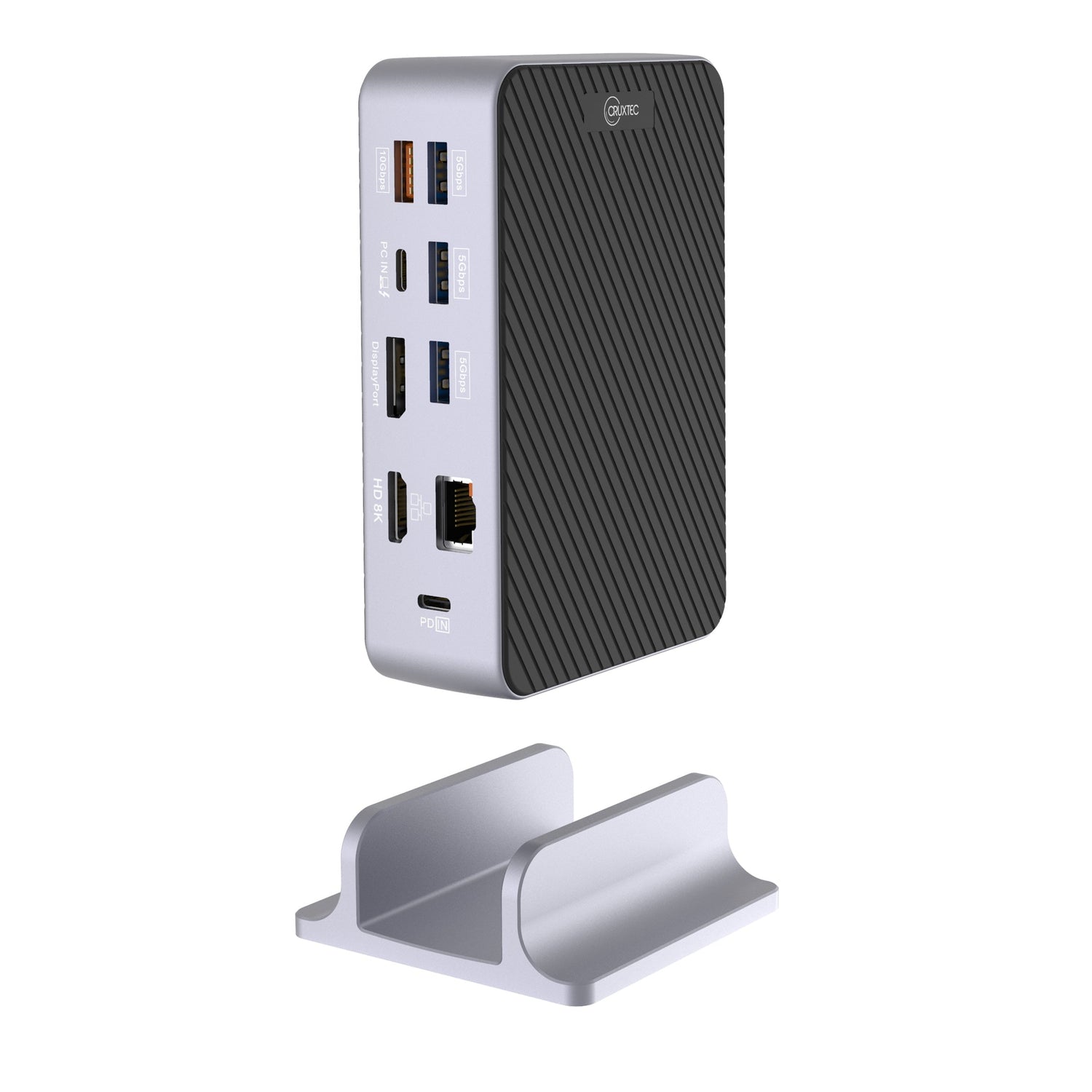

4) Magnetic aluminum alloy base for more stable and aesthetic desktop placement.
Display modes:

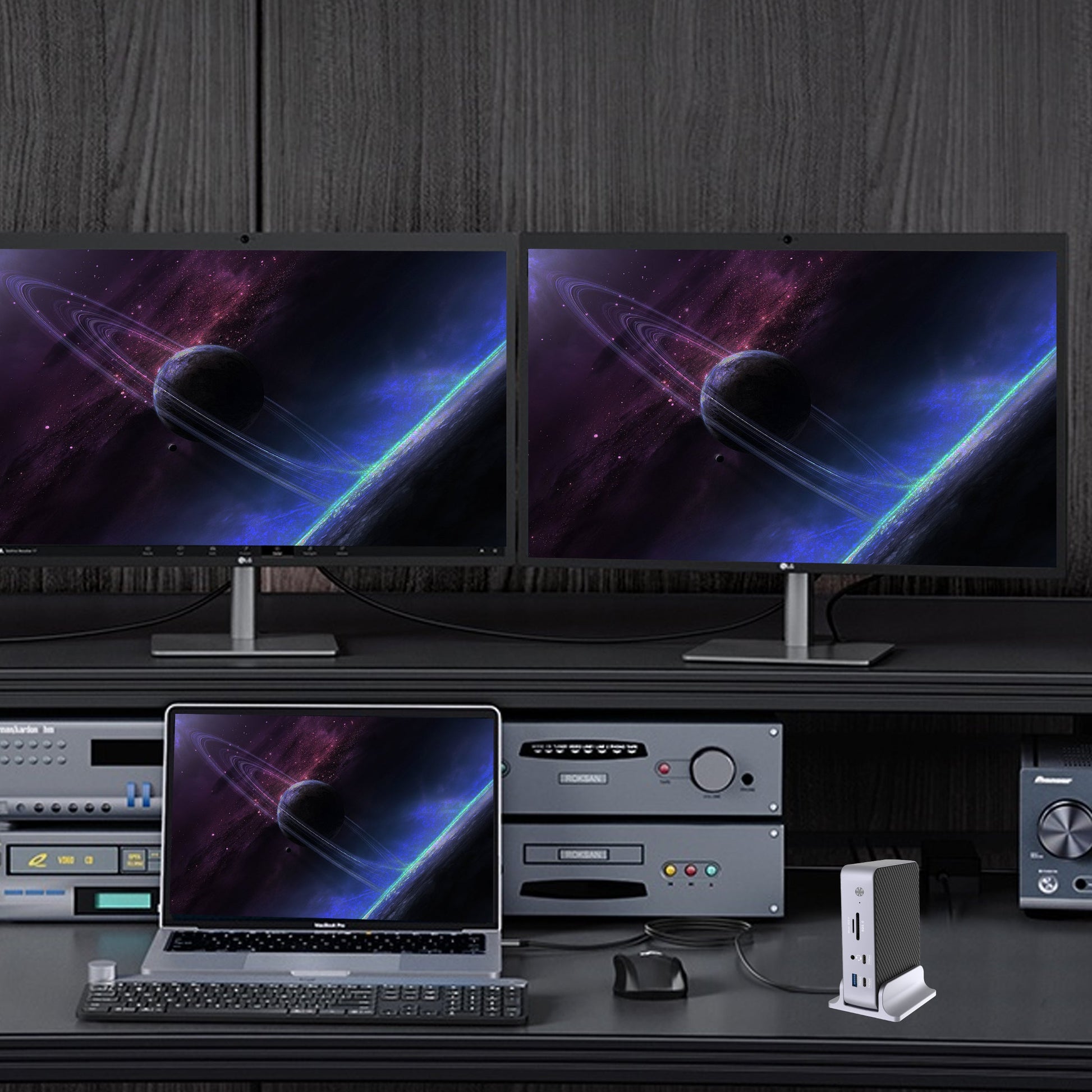

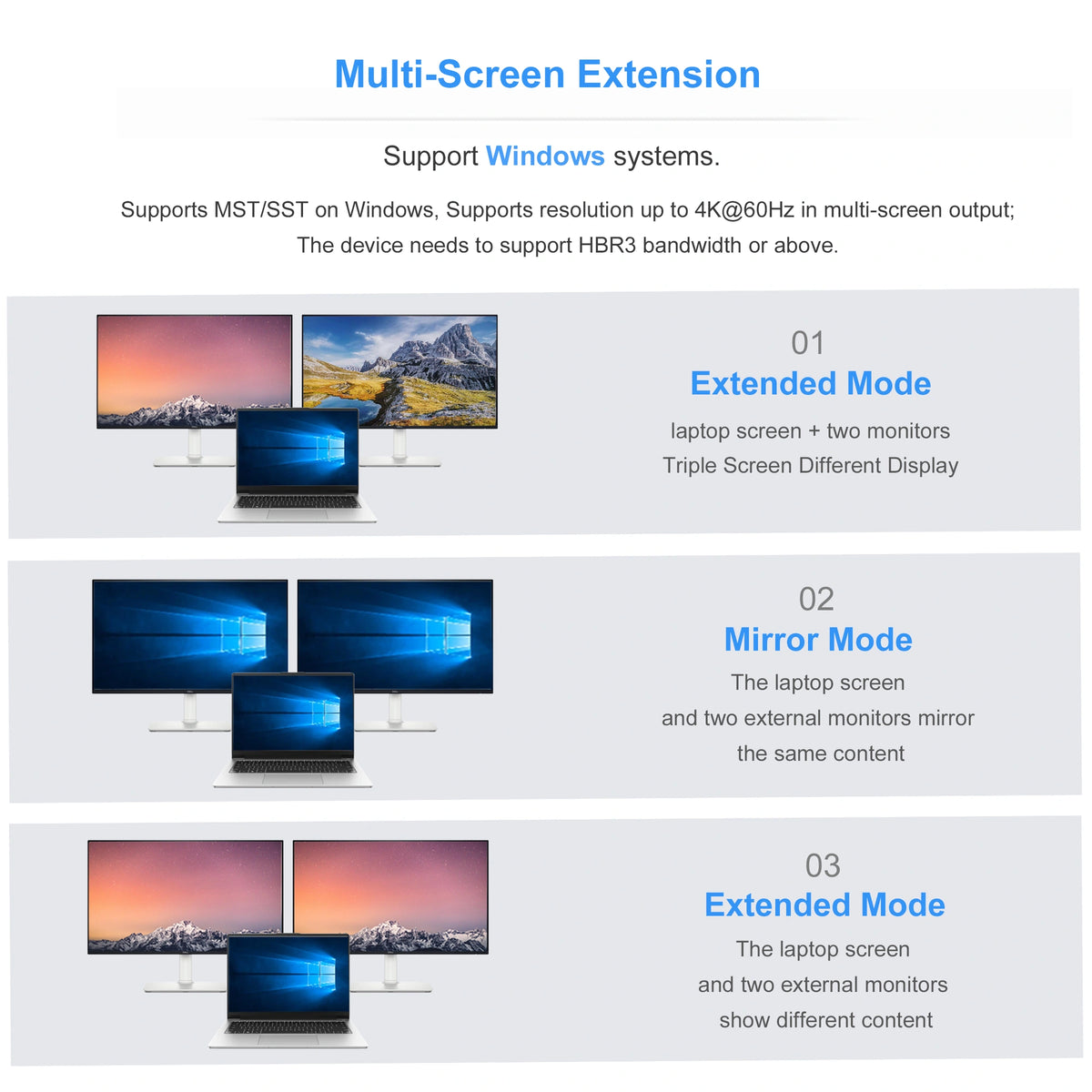

Windows: On compatible MST/HBR3 hosts, HDMI and DisplayPort can support mirrored or independent extended displays.

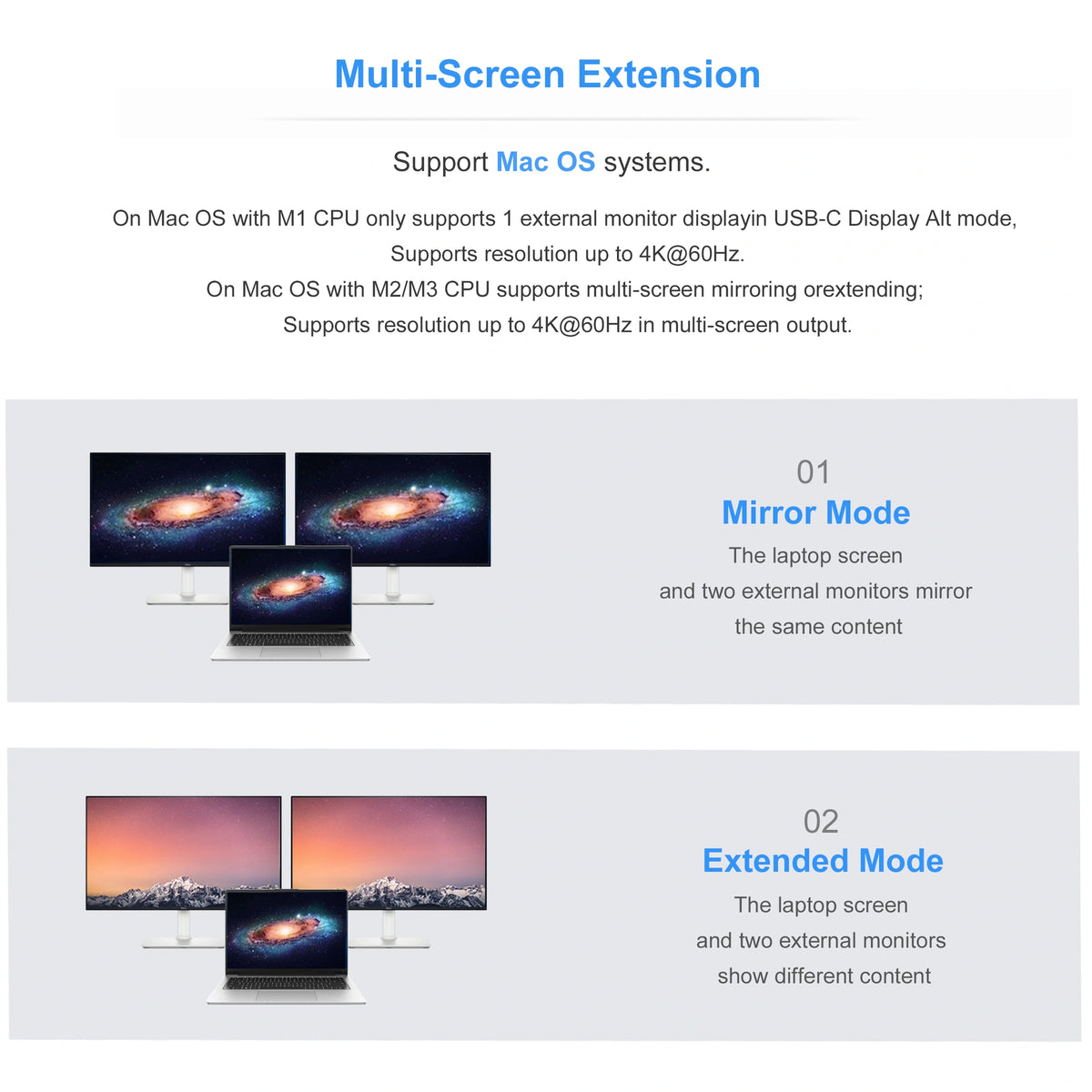

macOS: The Mac display can extend to an external desktop, but the HDMI and DisplayPort monitors mirror each other. Two independent extended external displays are not supported through the dock’s single USB-C host connection. No firmware update or display setting changes this behaviour.
Need help choosing between mirrored screens and an extended desktop? Read Mirror or Extend? A Simple Guide to MST and Multiple Displays.
Tech Specs
x

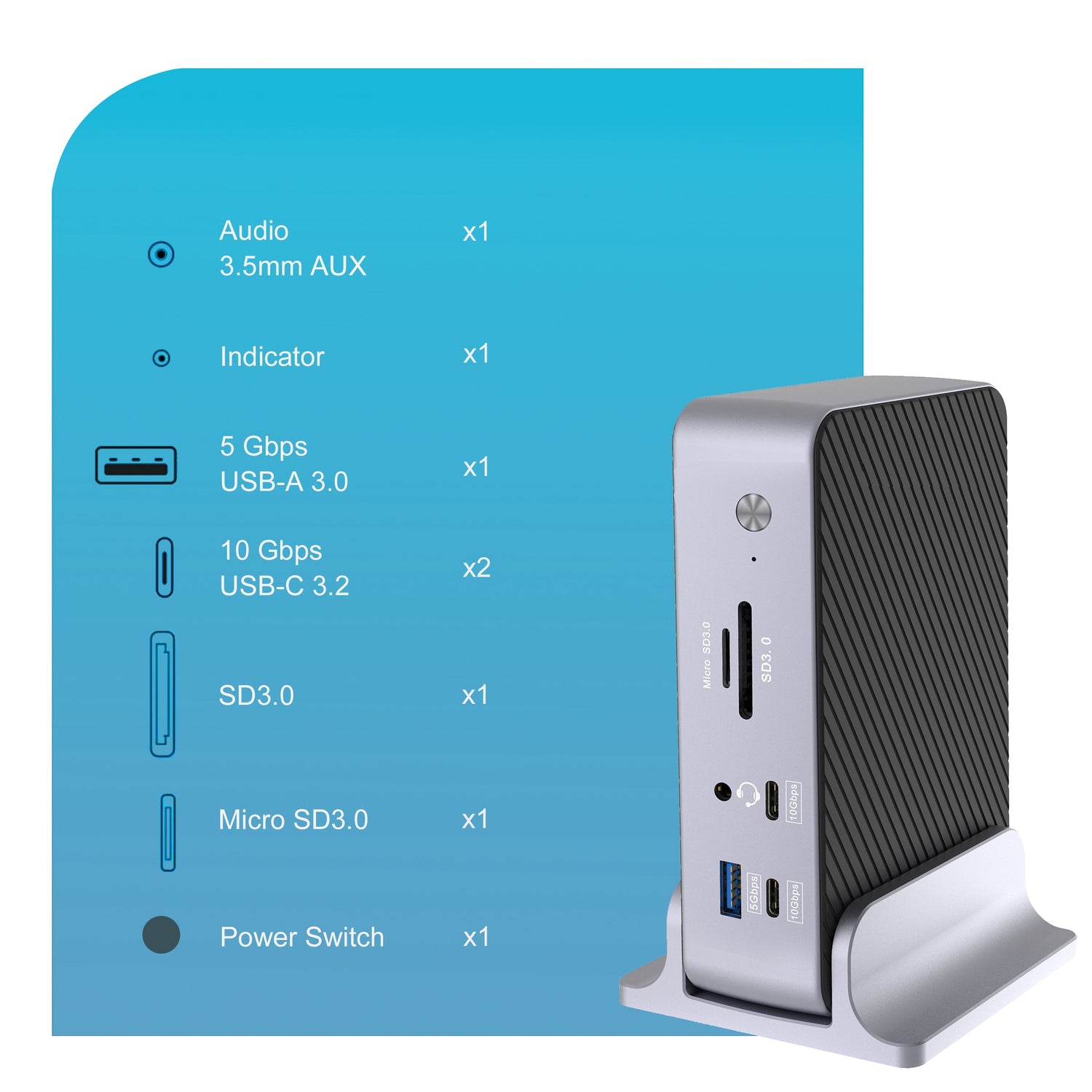

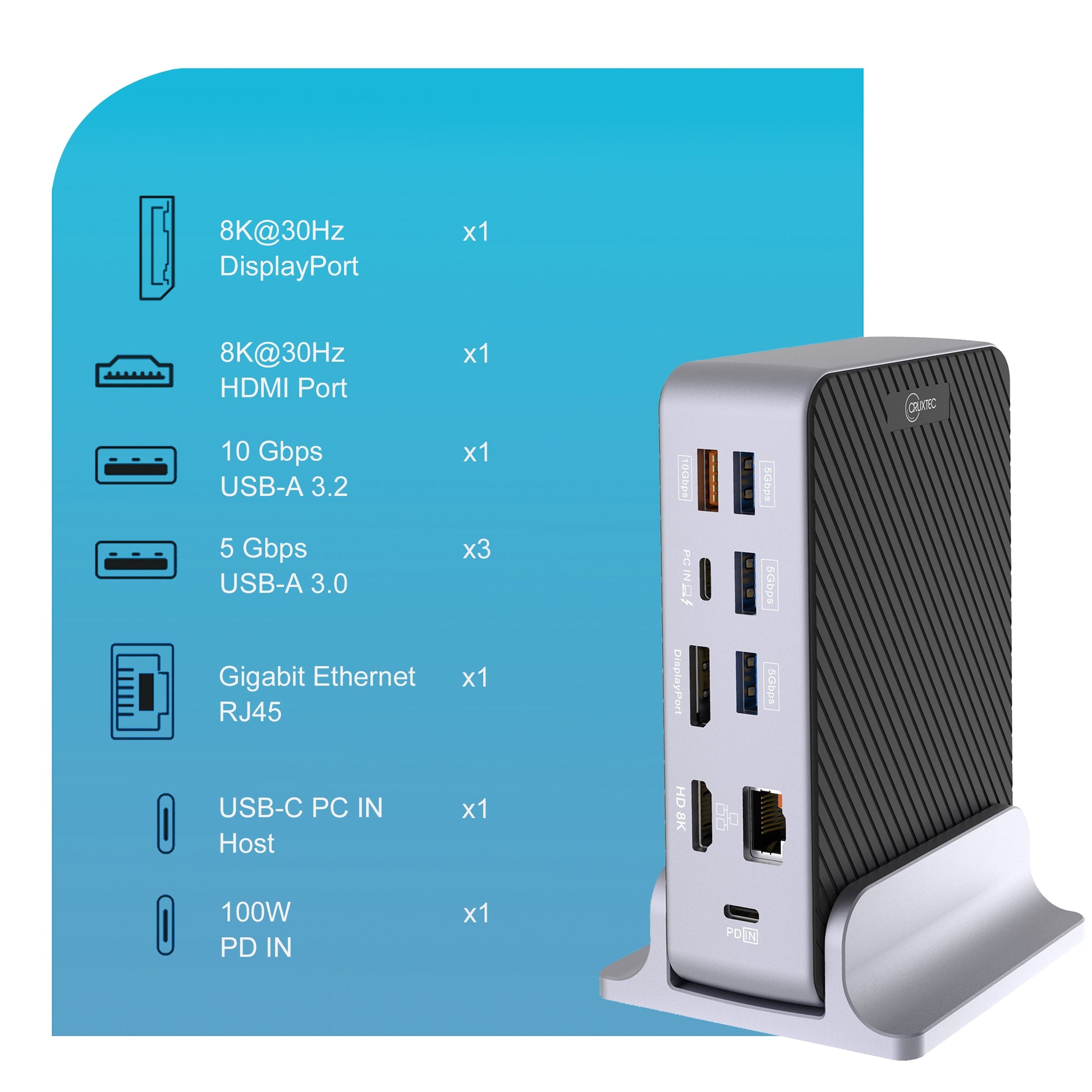

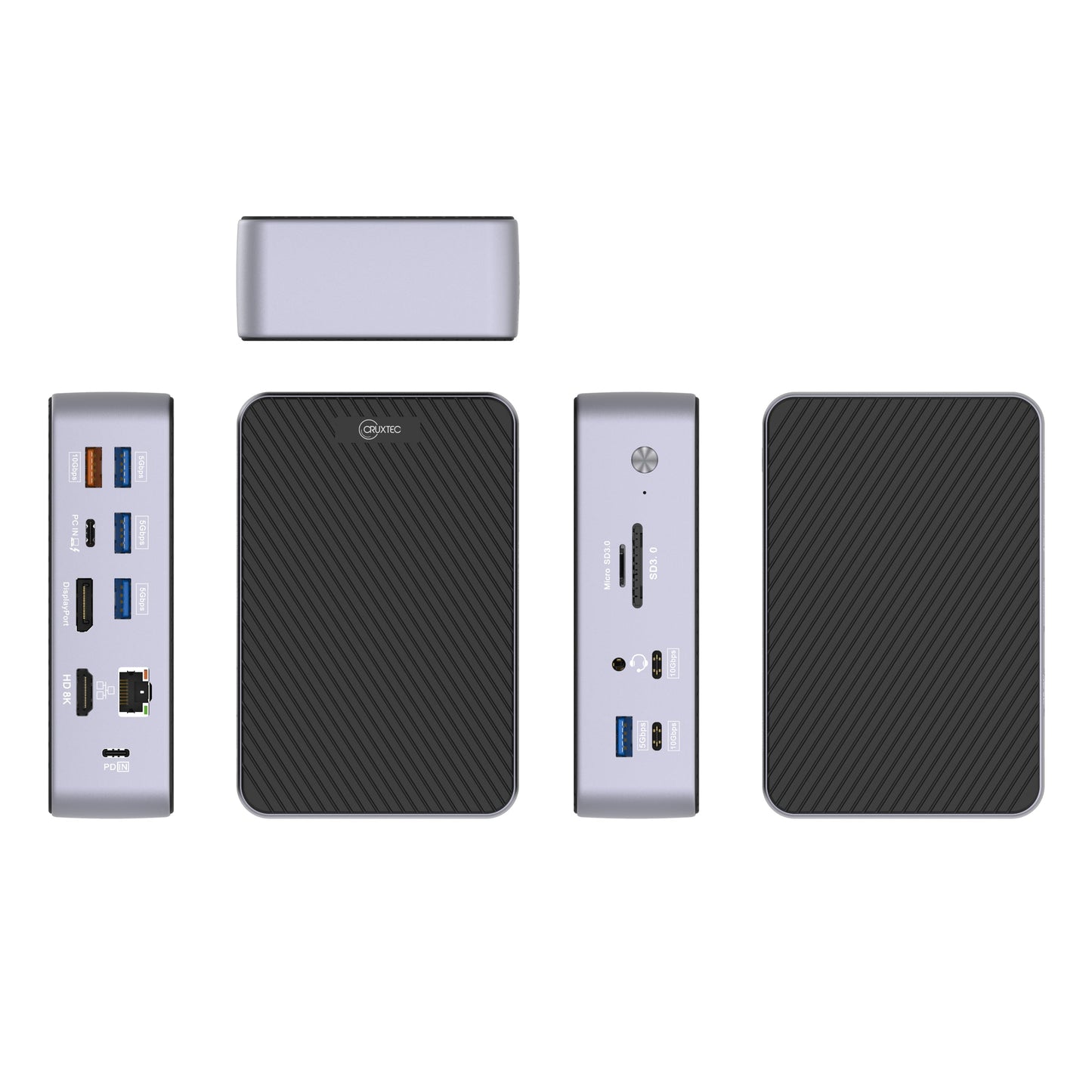

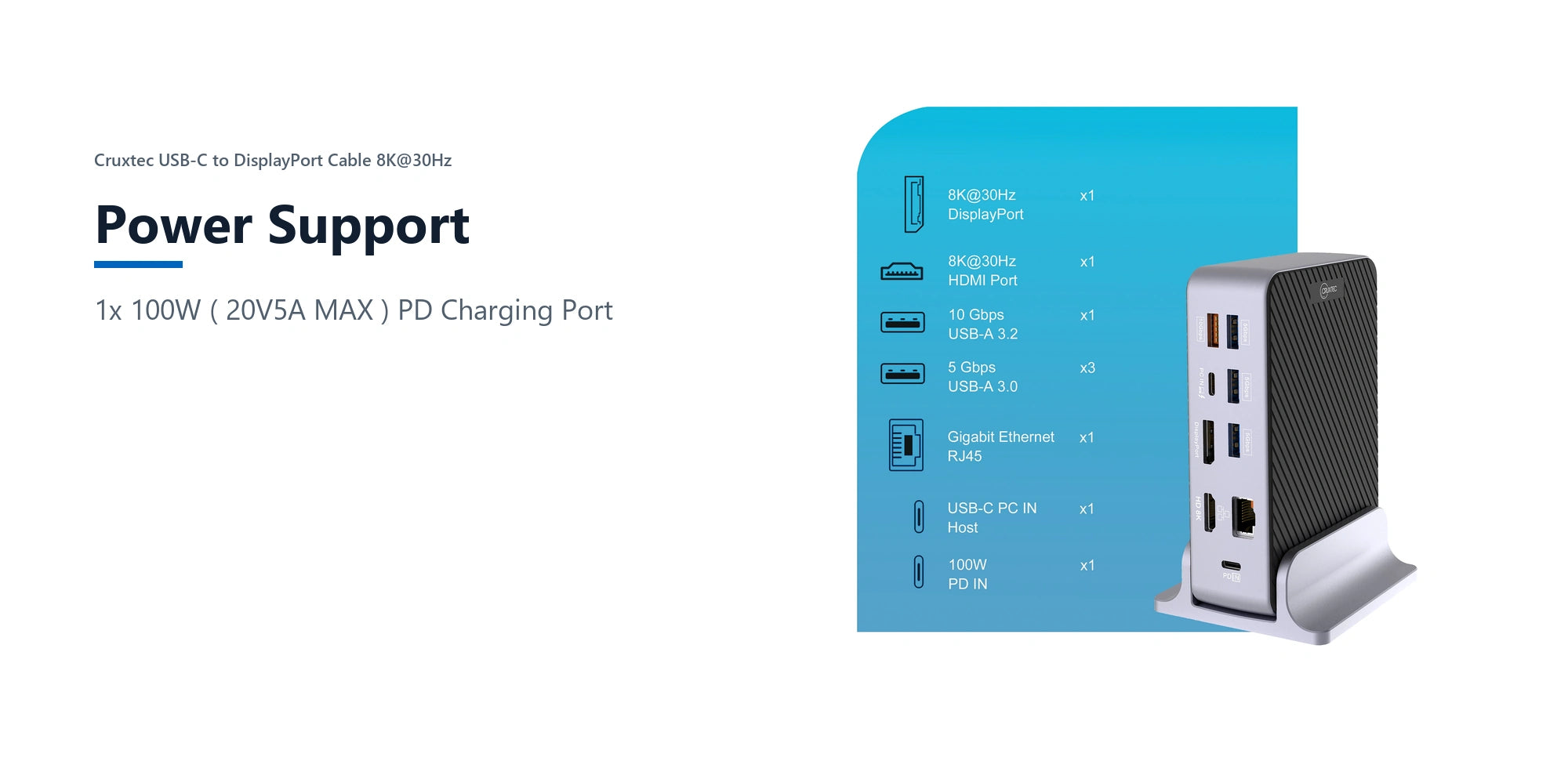

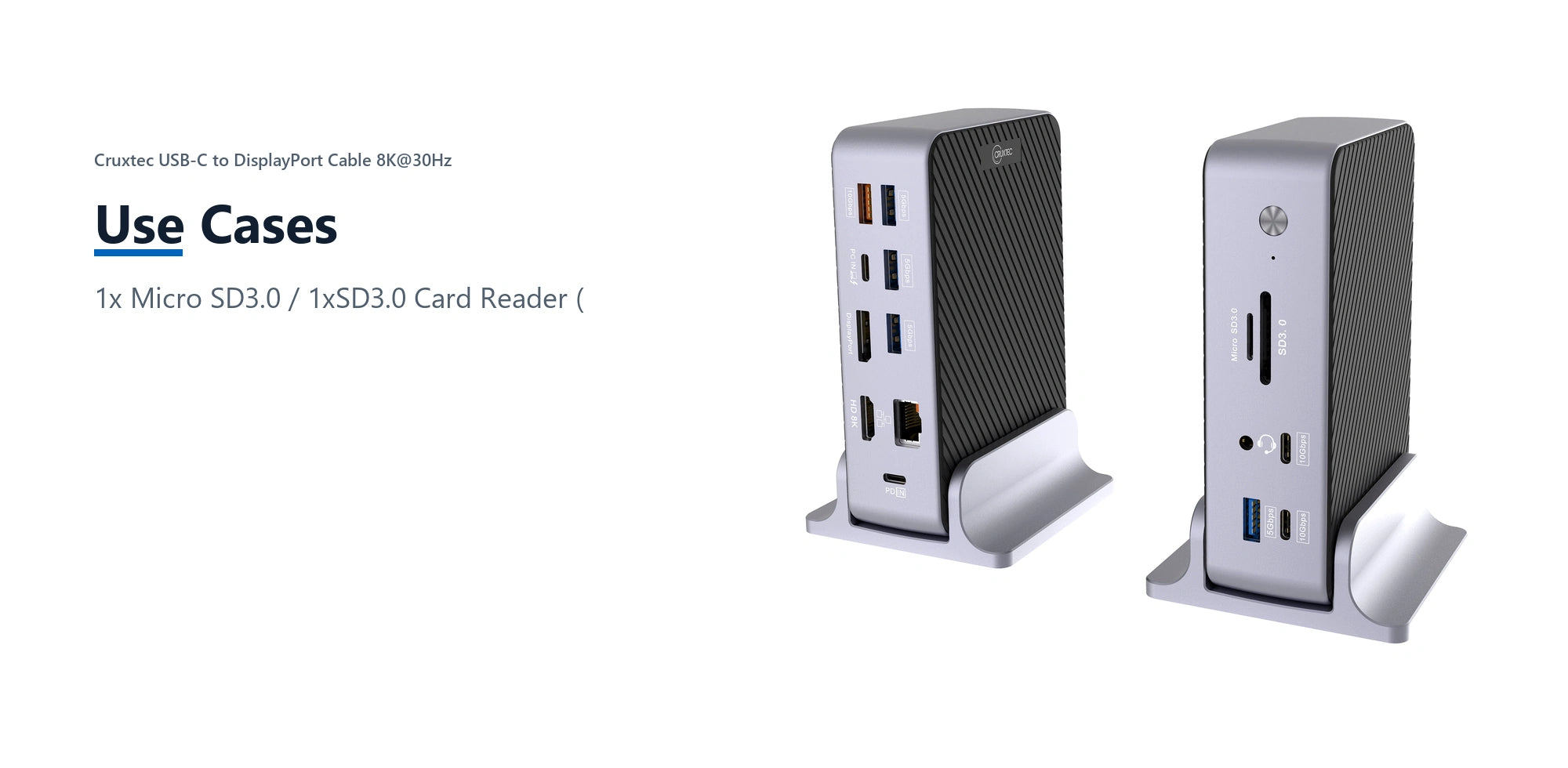

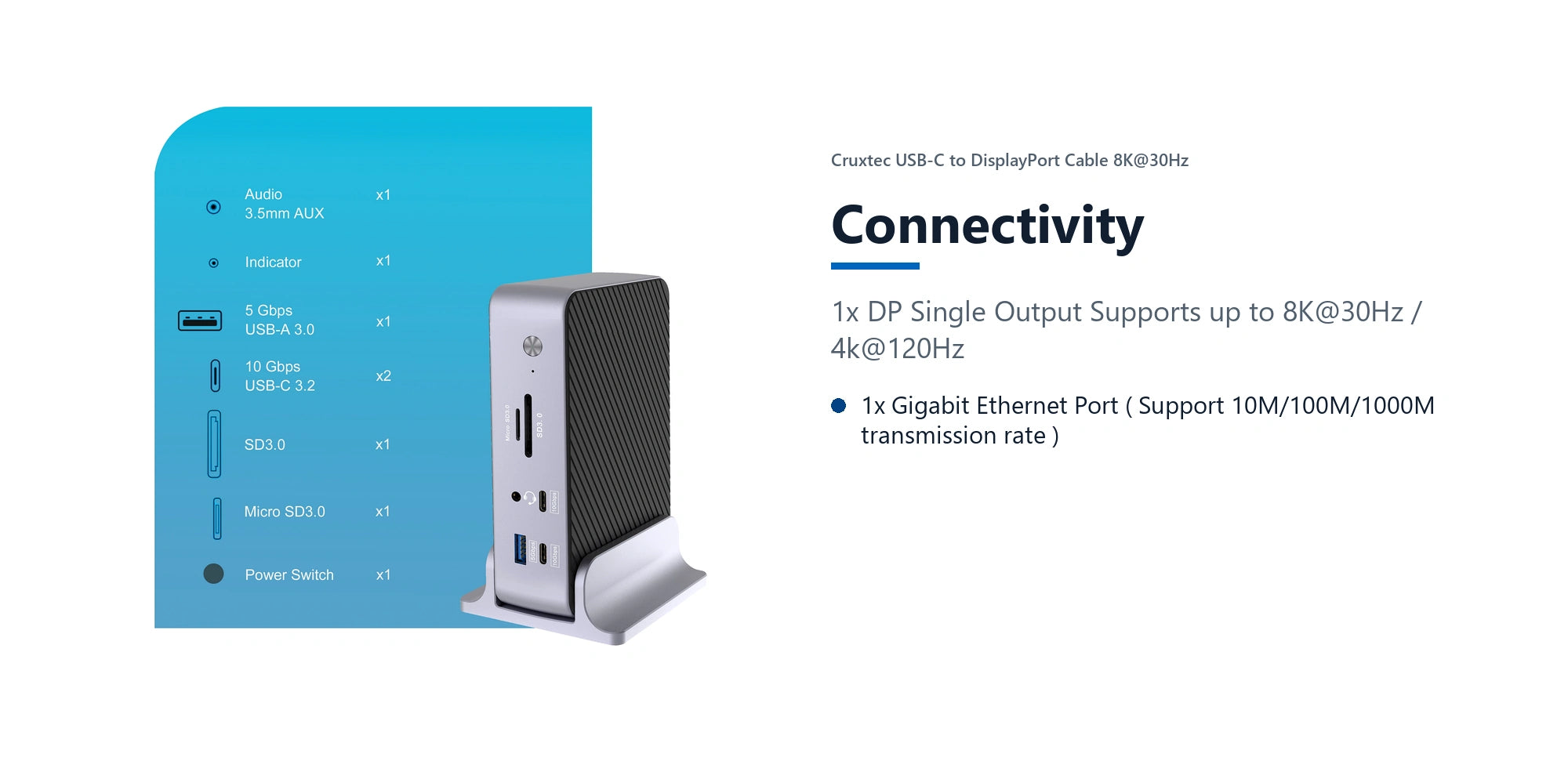

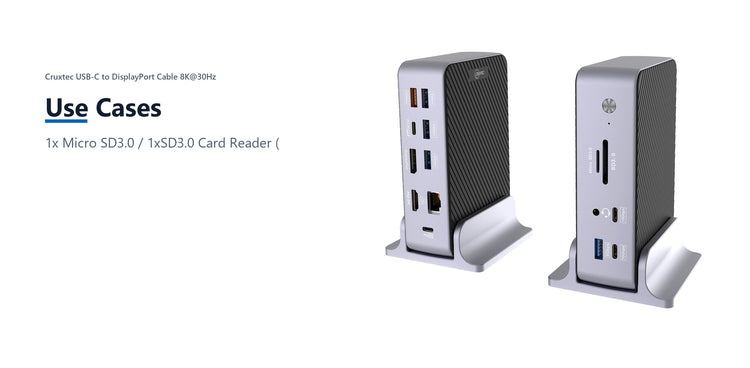

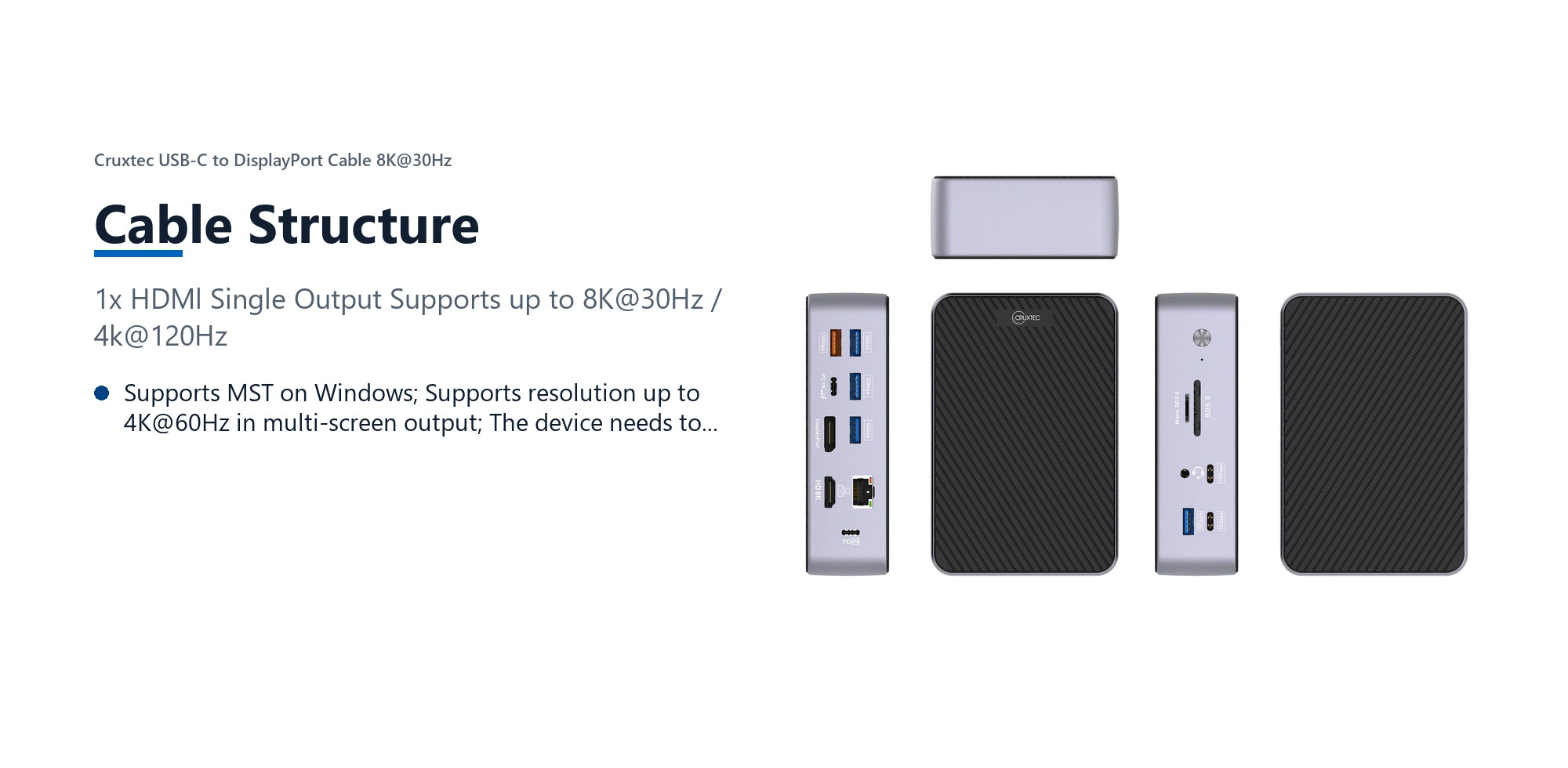

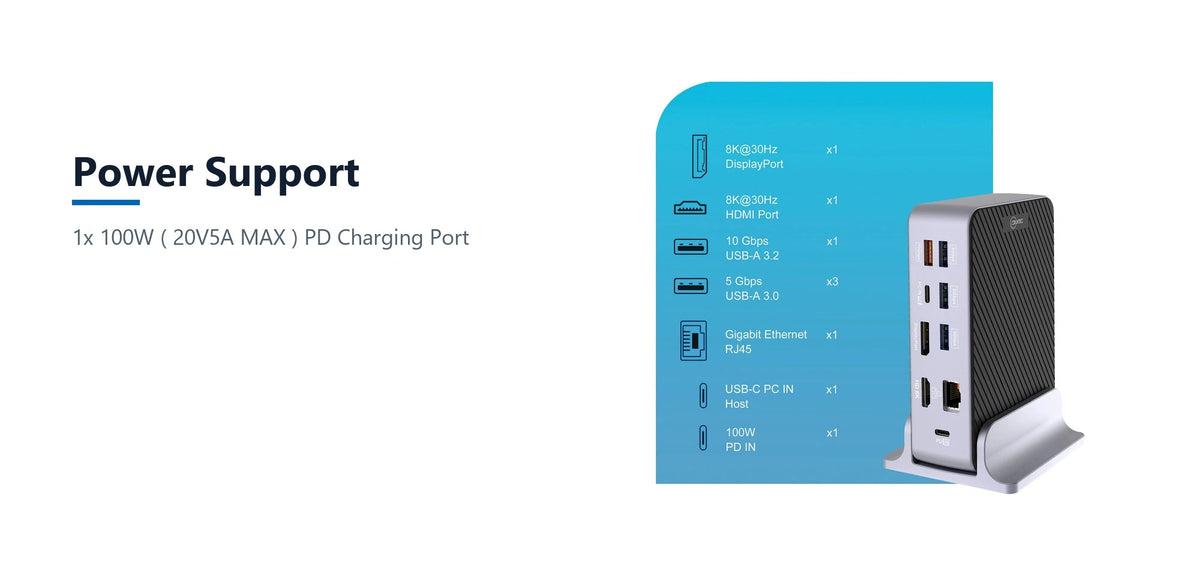

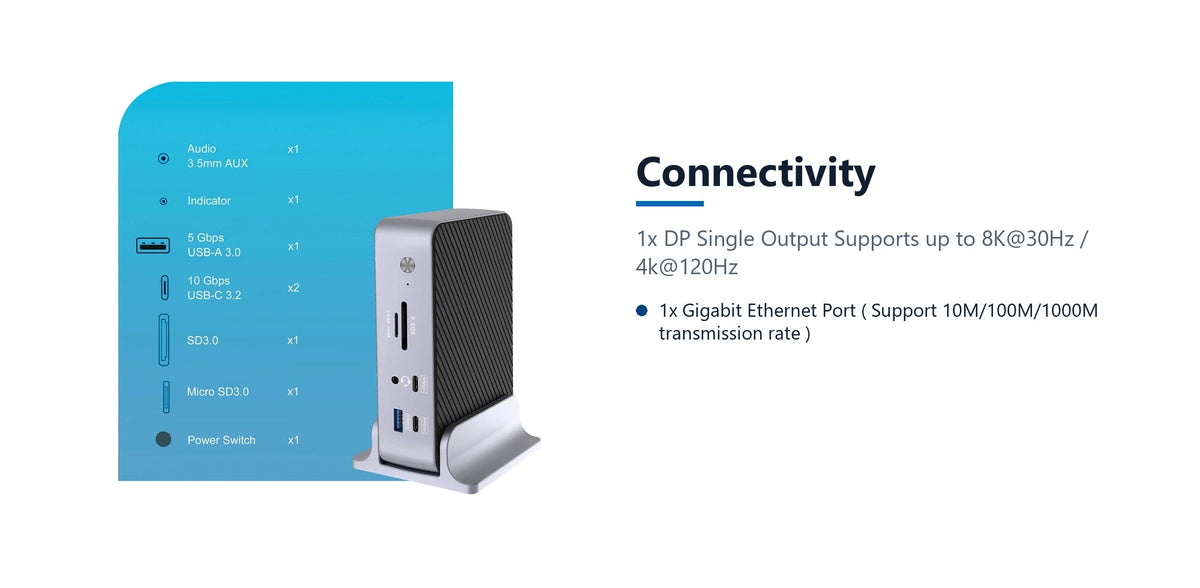

1) Interface: 1x HDMI Single Output Supports up to 8K@30Hz / 4K@120Hz 1x DP Single Output Supports up to 8K@30Hz / 4K@120Hz 1x 100W (20V5A MAX) PD Charging Port 1x USB-C Port for Host Connection (Supports 60W power charging output) 1x Gigabit Ethernet Port (Support 10M/100M/1000M transmission rate) 4x USB3.0 5Gbps Type-A Ports 1x USB3.1 10Gbps Type-A Port 2x USB3.1 10Gbps Type-C Ports 1x Micro SD3.0 / 1xSD3.0 Card Reader (Supports up to 130Mpbs/S transmission rate) 1x 3.5mm Audio Jack (Supports 96 KHz 24-bit sample rate and external audio codecs)
2) Chipsets: VMM6210+GL3590Q8+GL3510*2+GL3231+RTL8153B+CS202

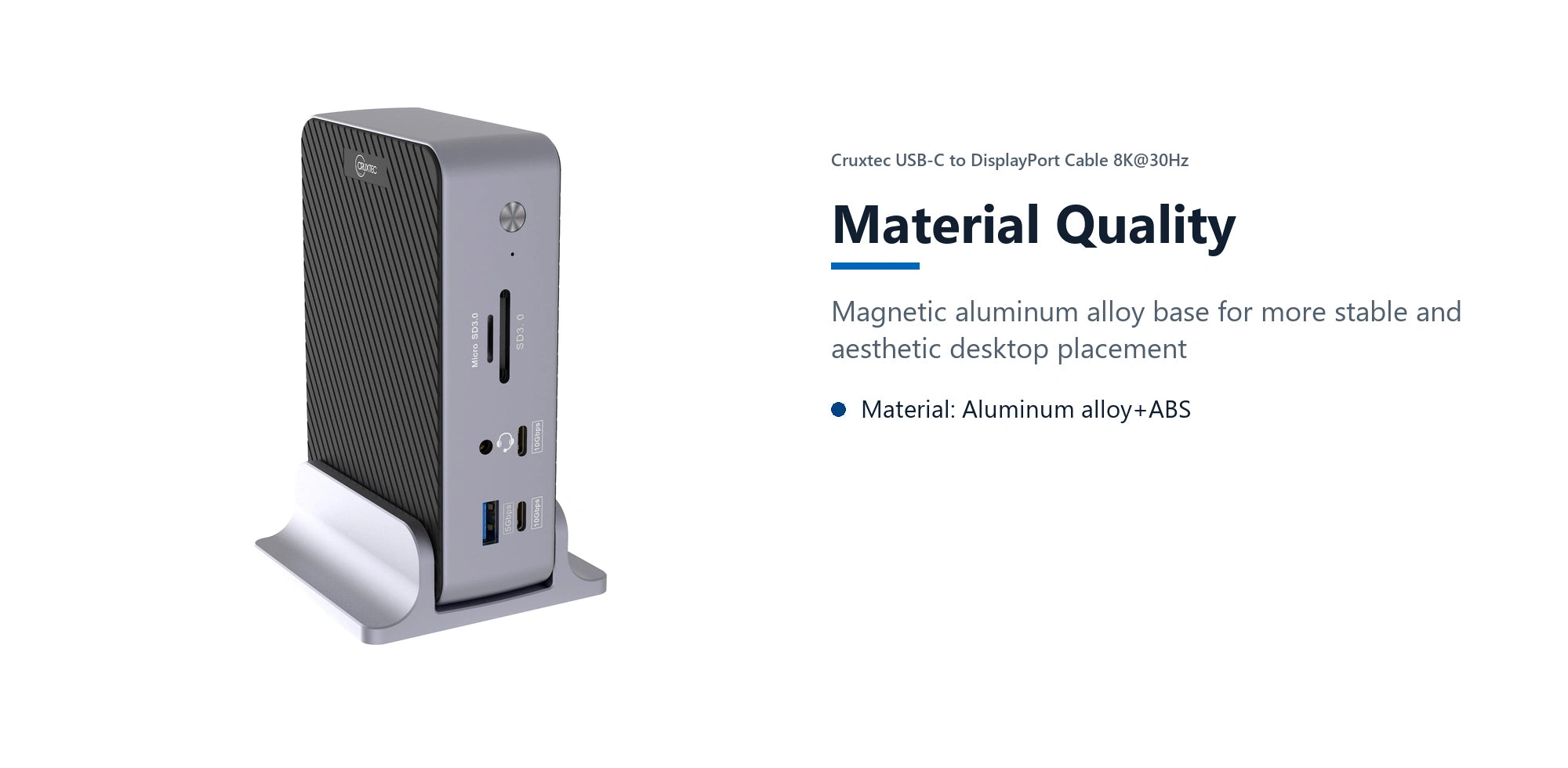

3) Material: Aluminum alloy+ABS
4) Cable Length: 60cm
5) Colour: Metallic Gray + Black
6) Platforms: Windows / macOS / Chromebook
7) Supports MST on Windows
Supports resolution up to 4K@60Hz in multi-screen output
The device needs to support HBR3 bandwidth or above.
8) On macOS with M1 CPU only supports 1 external monitor display in USB-C Display Alt mode
Supports resolution up to 4K@120Hz.
9) On macOS with M2/M3 CPU supports multi-screen mirroring or extending
Supports resolution up to 4K@60Hz in multi-screen output.
10) Product comes with: 1* USB4 20Gbps C to C Cable 1m.
