Features
x· All-in-one active optical cable combining data transfer, power delivery, and audio/video transmission in a single connection.

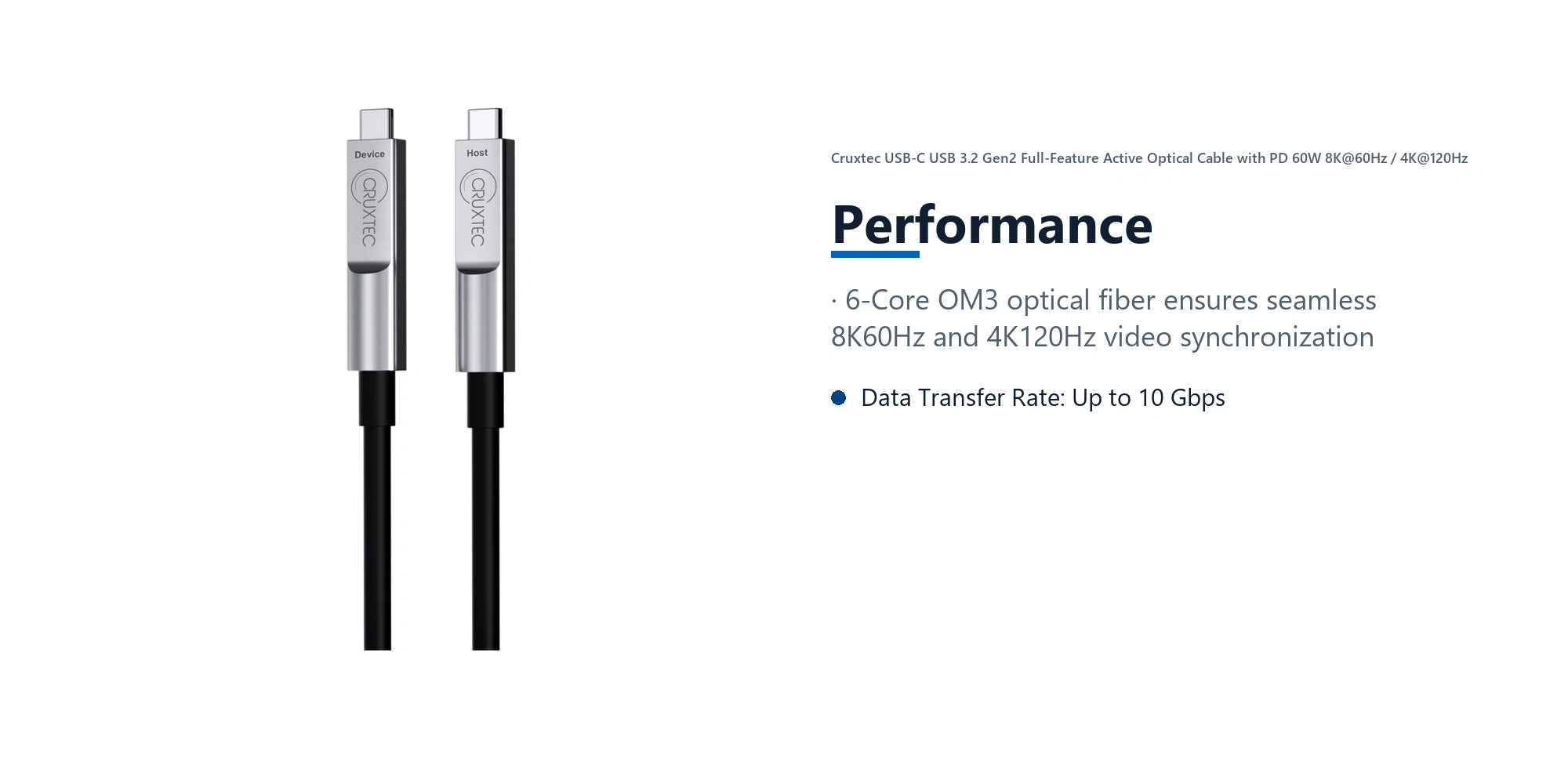

· 6-Core OM3 optical fiber ensures seamless 8K60Hz and 4K120Hz video synchronization.
· Low power consumption and enhanced signal integrity with strong anti-interference performance.
· Durable and lightweight design with premium zinc-alloy connectors and flexible TPE jacket.
Tech Specs

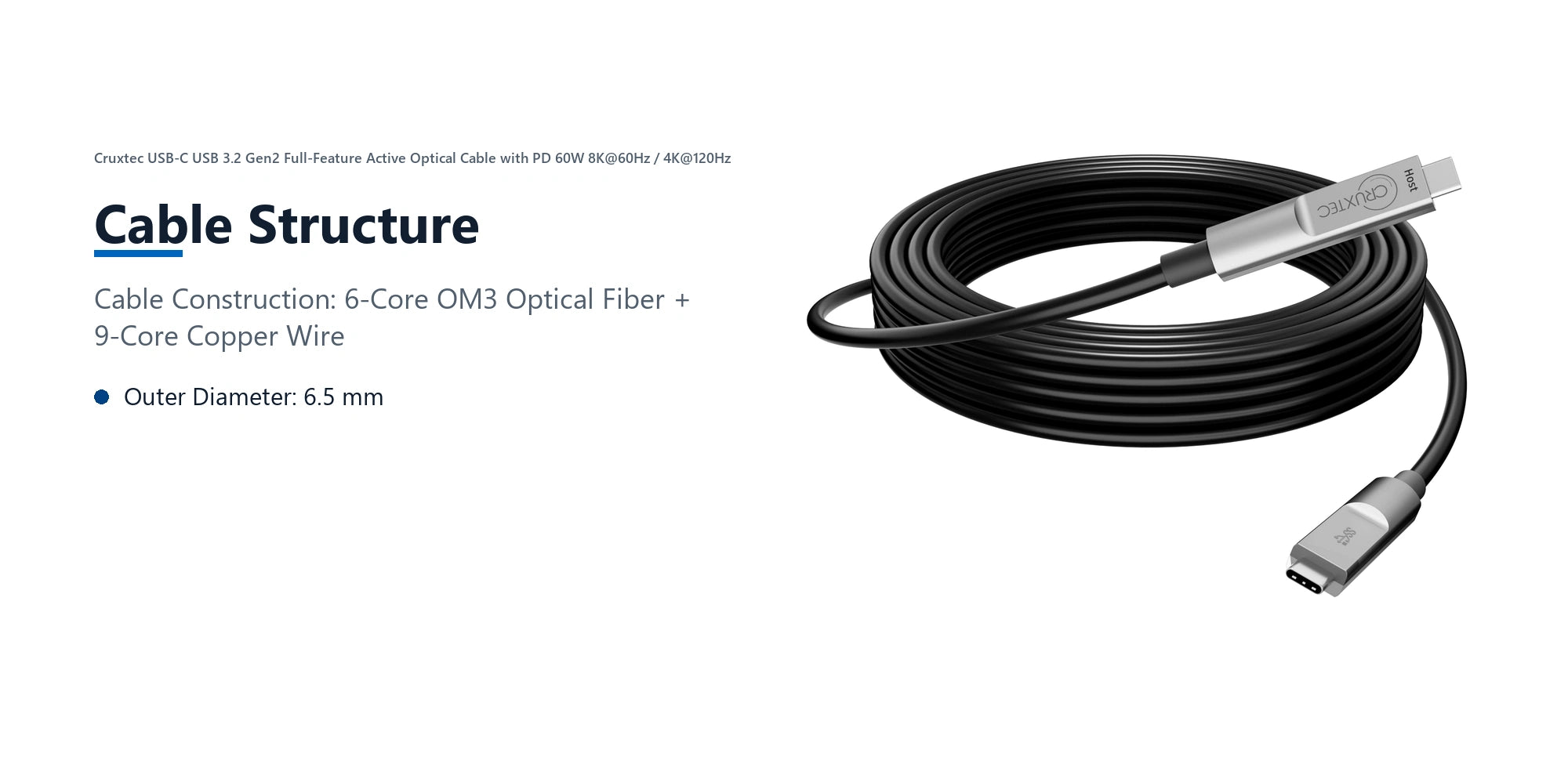

x1) Cable Construction: 6-Core OM3 Optical Fiber + 9-Core Copper Wire
2) Detailed Structure: (FIBER4C+MID)1C + (FIBER4C+MID)1C + (1/0.525B2C+D+AL+HM)1C + 19/0.08T1P + 19/0.08T2C + 90/0.08T*2C + F+D+ADB
3) Connector Type: Integrated stretch-formed Type-C connector
4) Connector Housing: Zinc Alloy

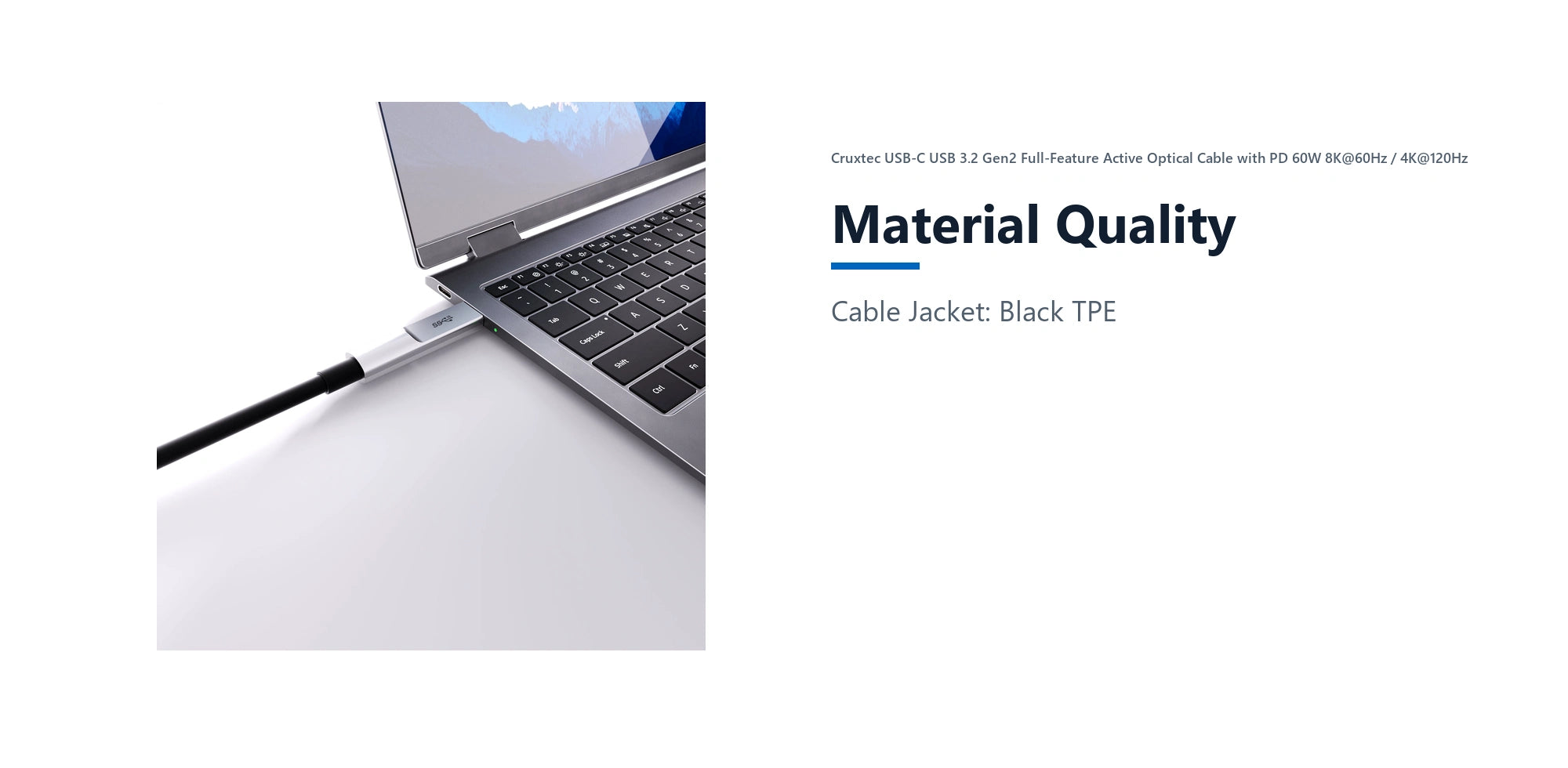

5) Cable Jacket: Black TPE
6) Outer Diameter: 6.5 mm
7) Chipset: C1BA V1.0
8) Power Consumption: 250 mW

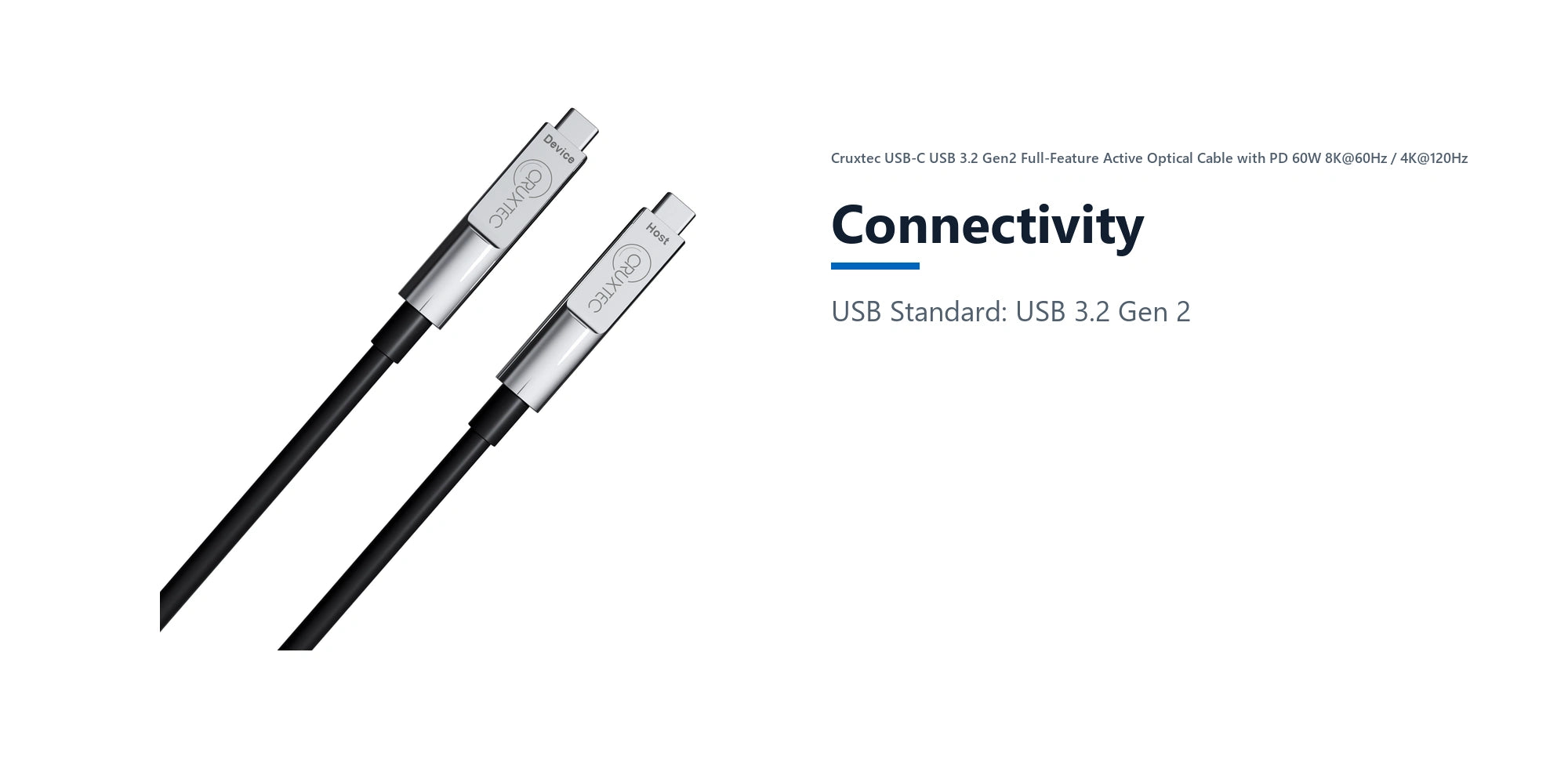

9) USB Standard: USB 3.2 Gen 2
10) Data Transfer Rate: Up to 10 Gbps

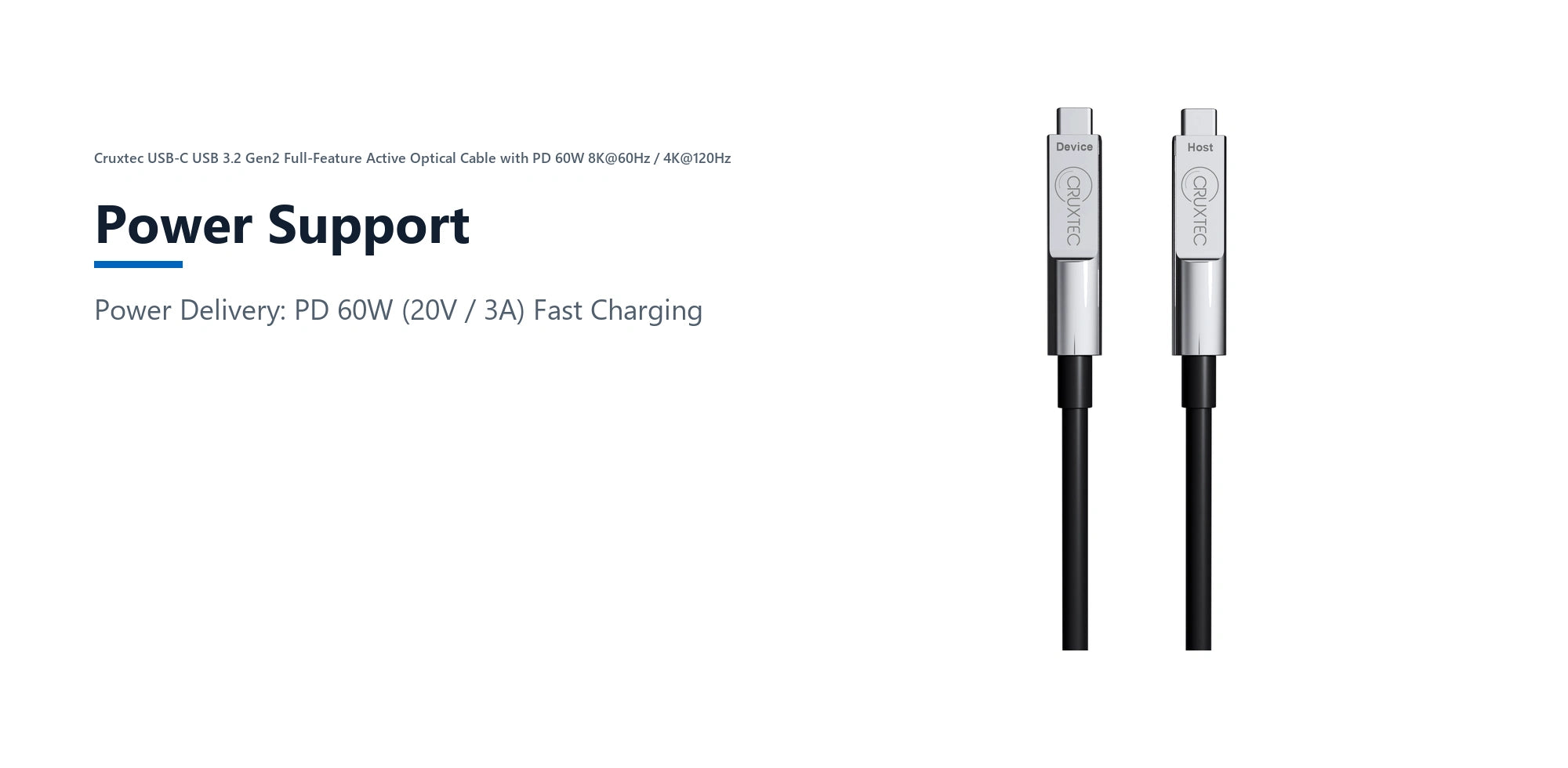

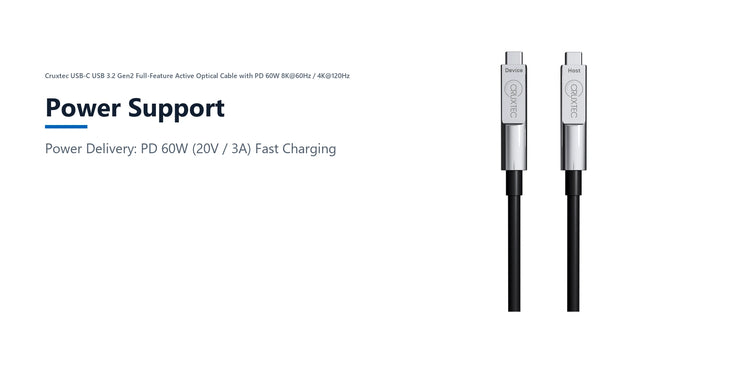

11) Power Delivery: PD 60W (20V / 3A) Fast Charging
12) Video Transmission: Supports 4K@60Hz, up to 8K@60Hz and 4K@120Hz

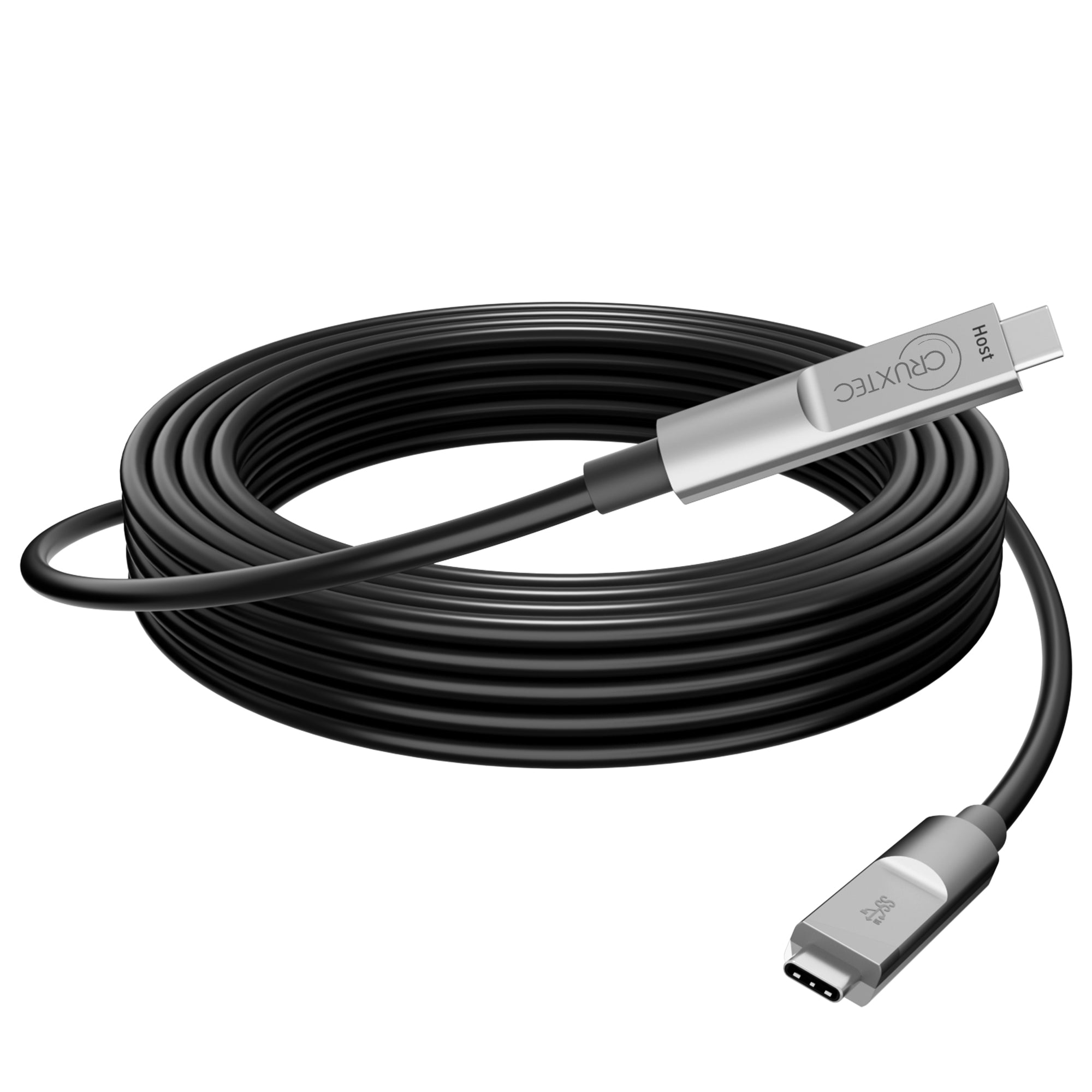

13) Available Lengths: 10 m / 15 m

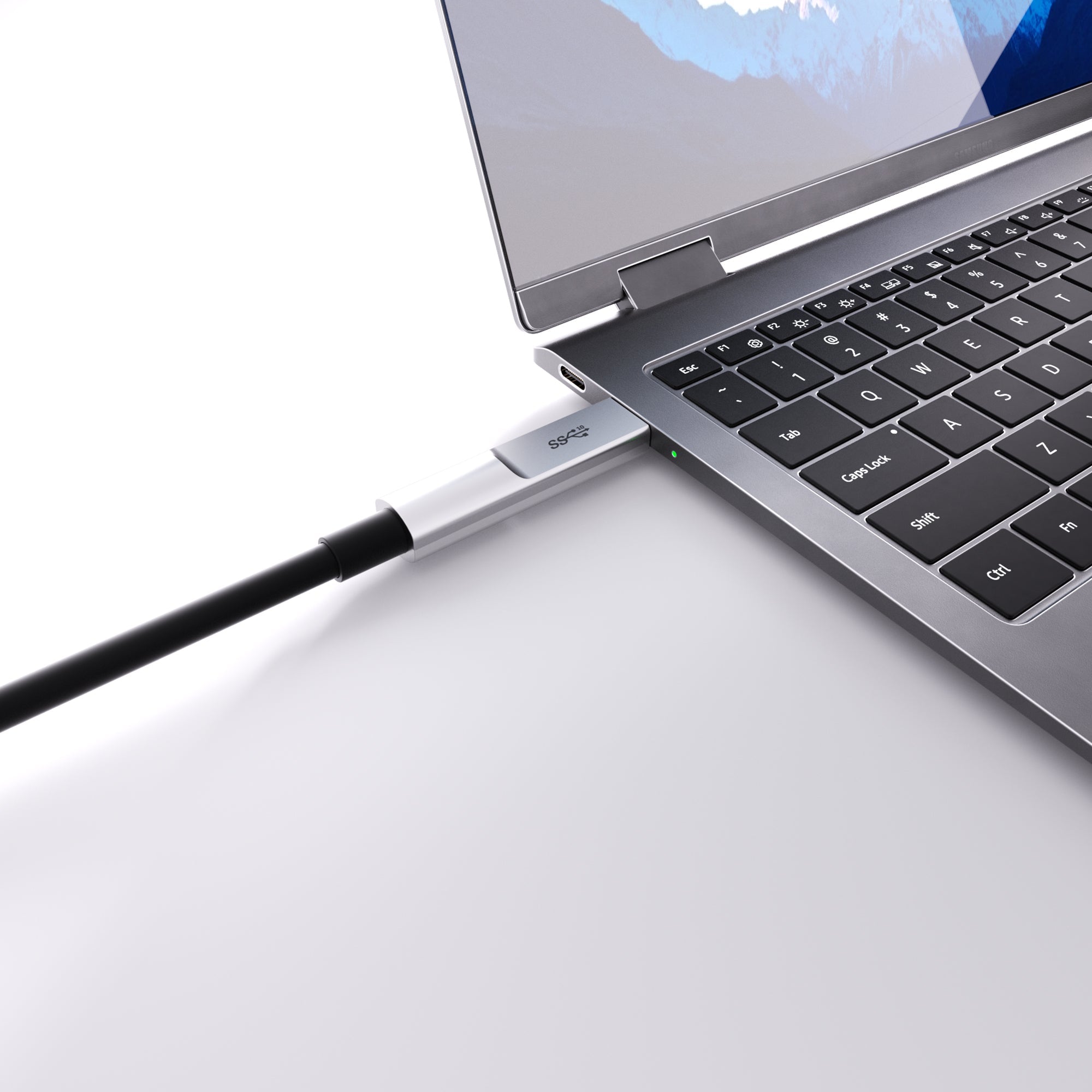

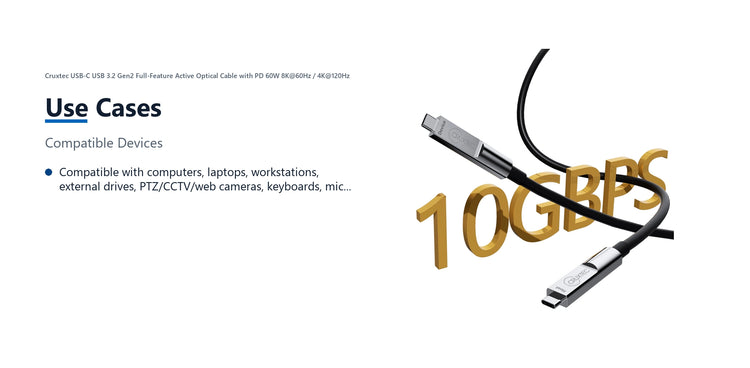

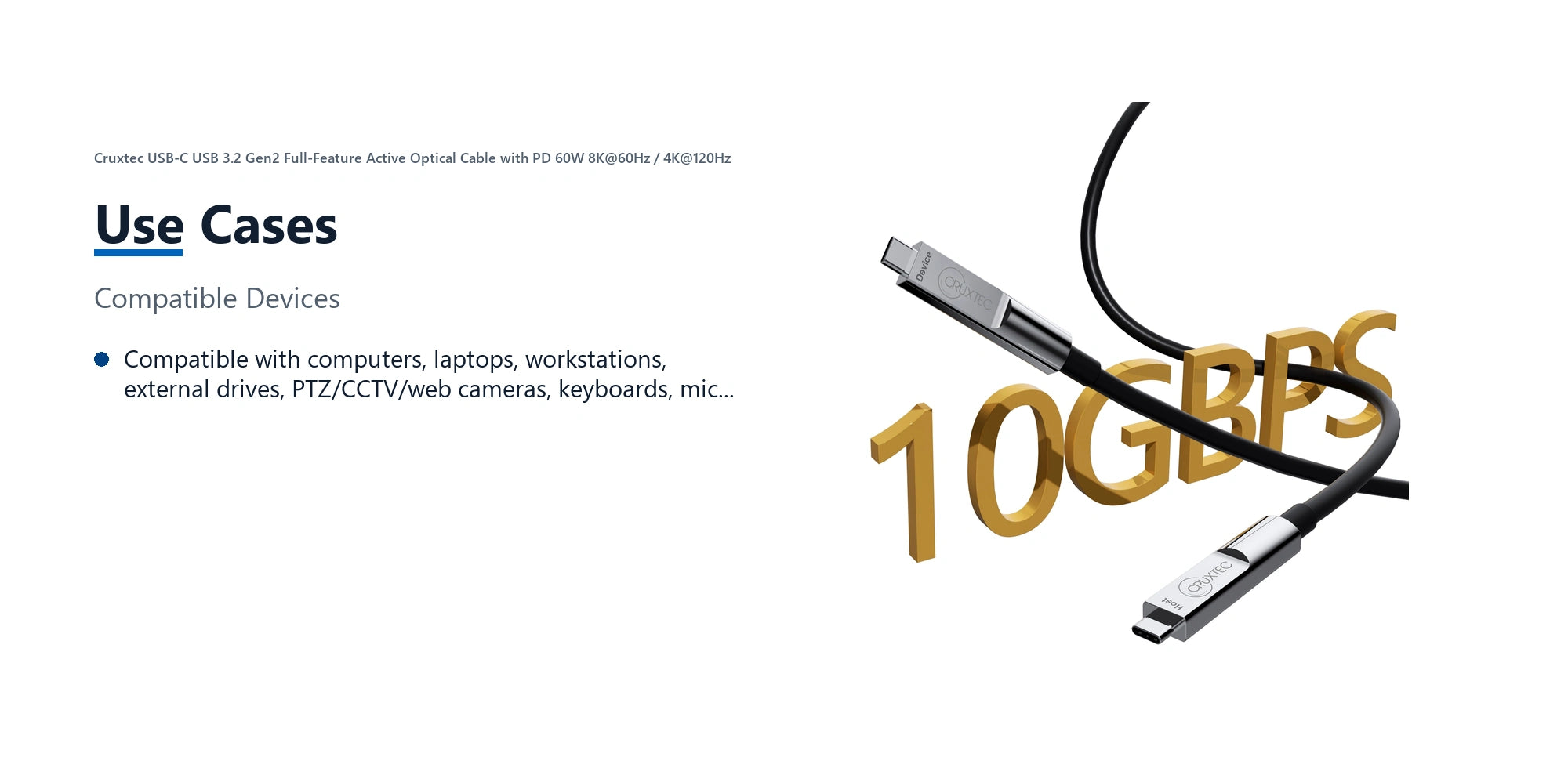

14) Compatible Devices: Compatible with computers, laptops, workstations, external drives, PTZ/CCTV/web cameras, keyboards, mice, touchscreens, tablets (iPad), Mac devices, and other high-speed Type-C-enabled laptops.

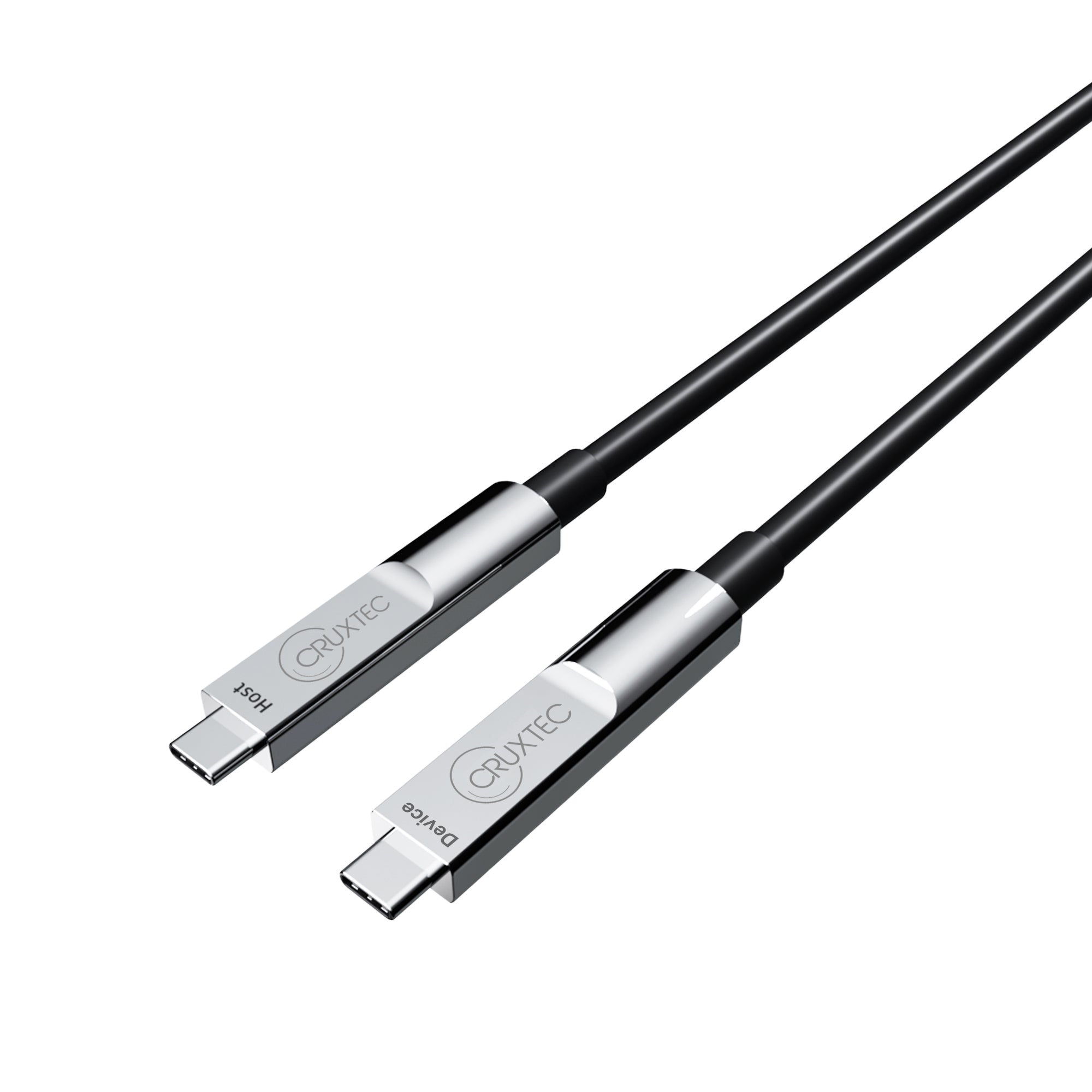

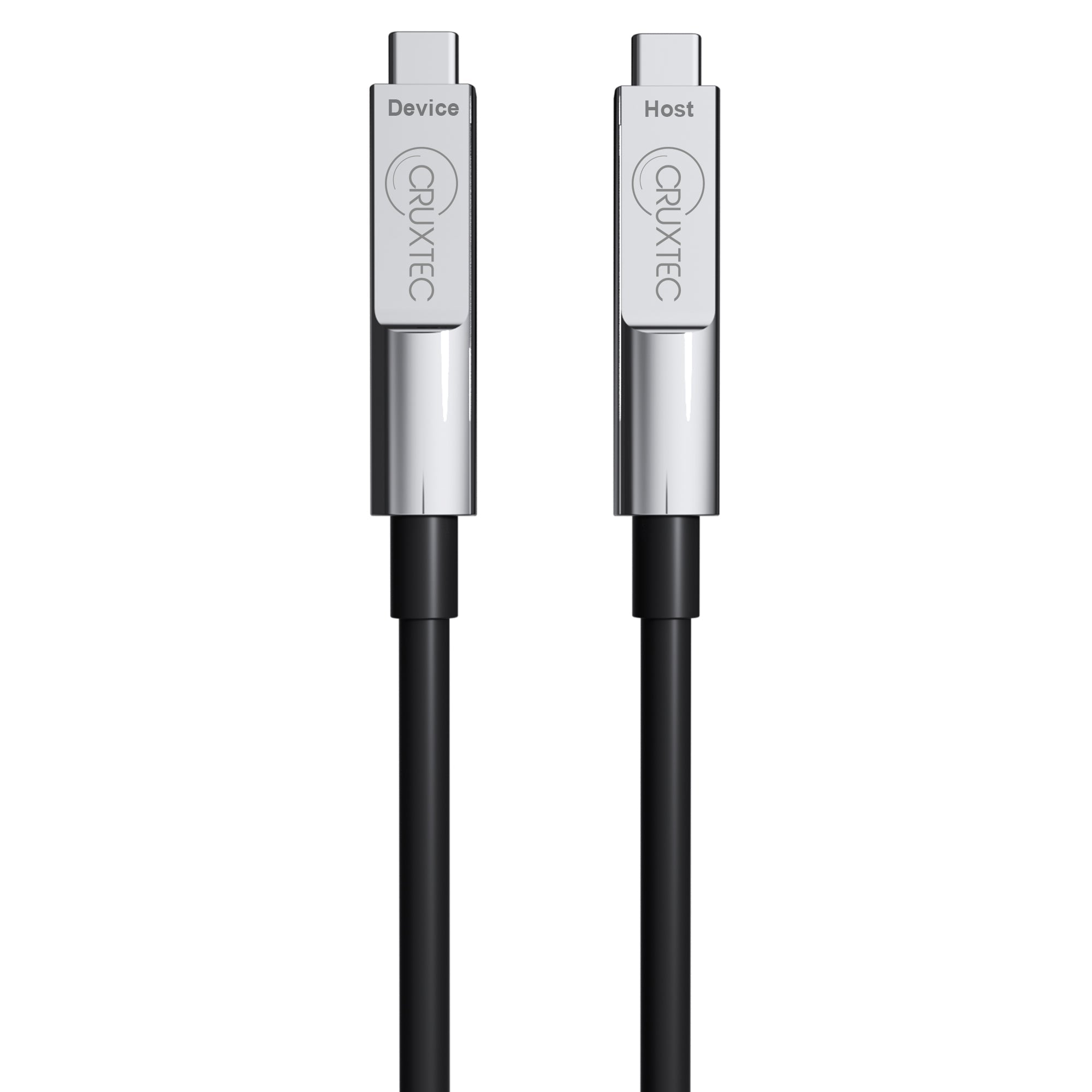

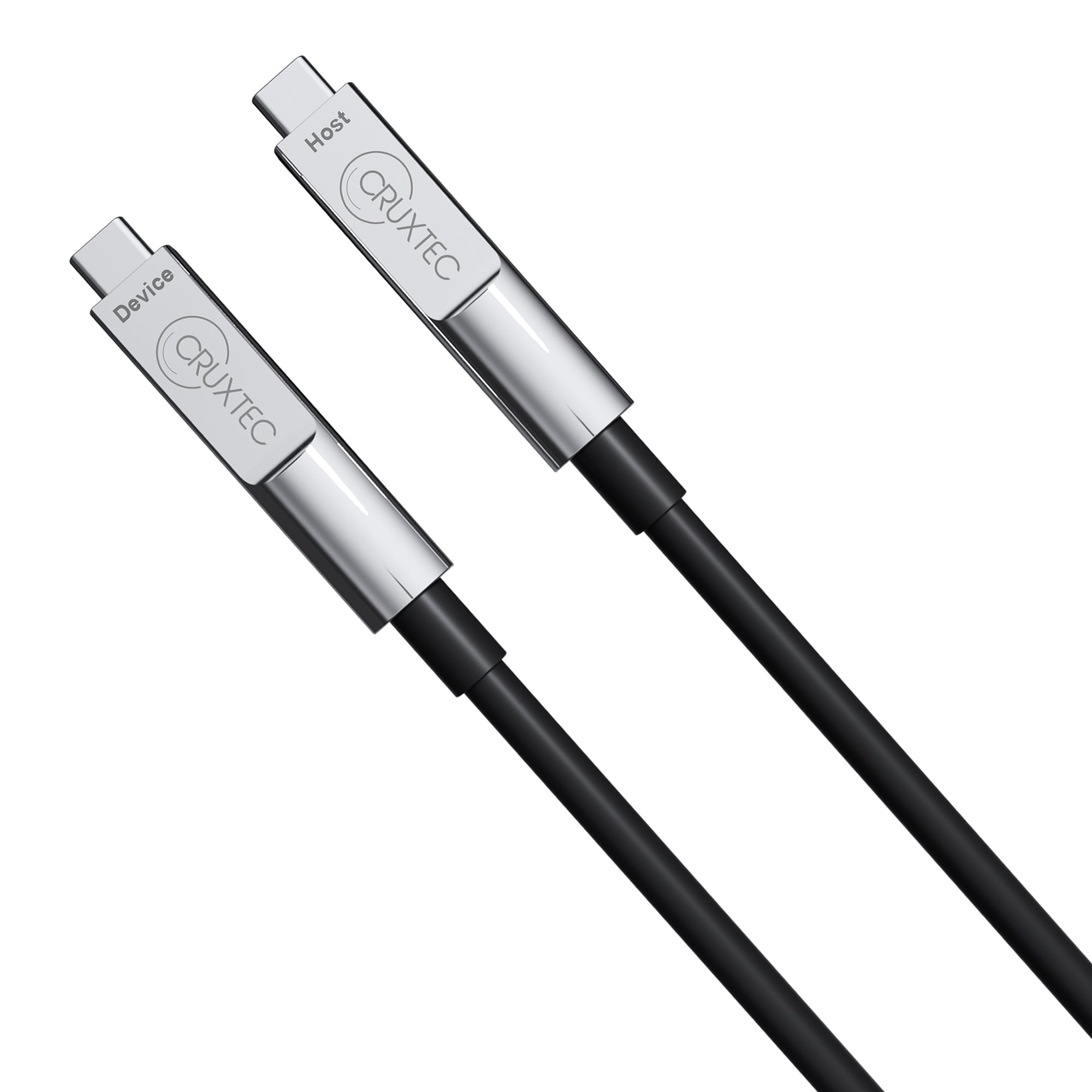

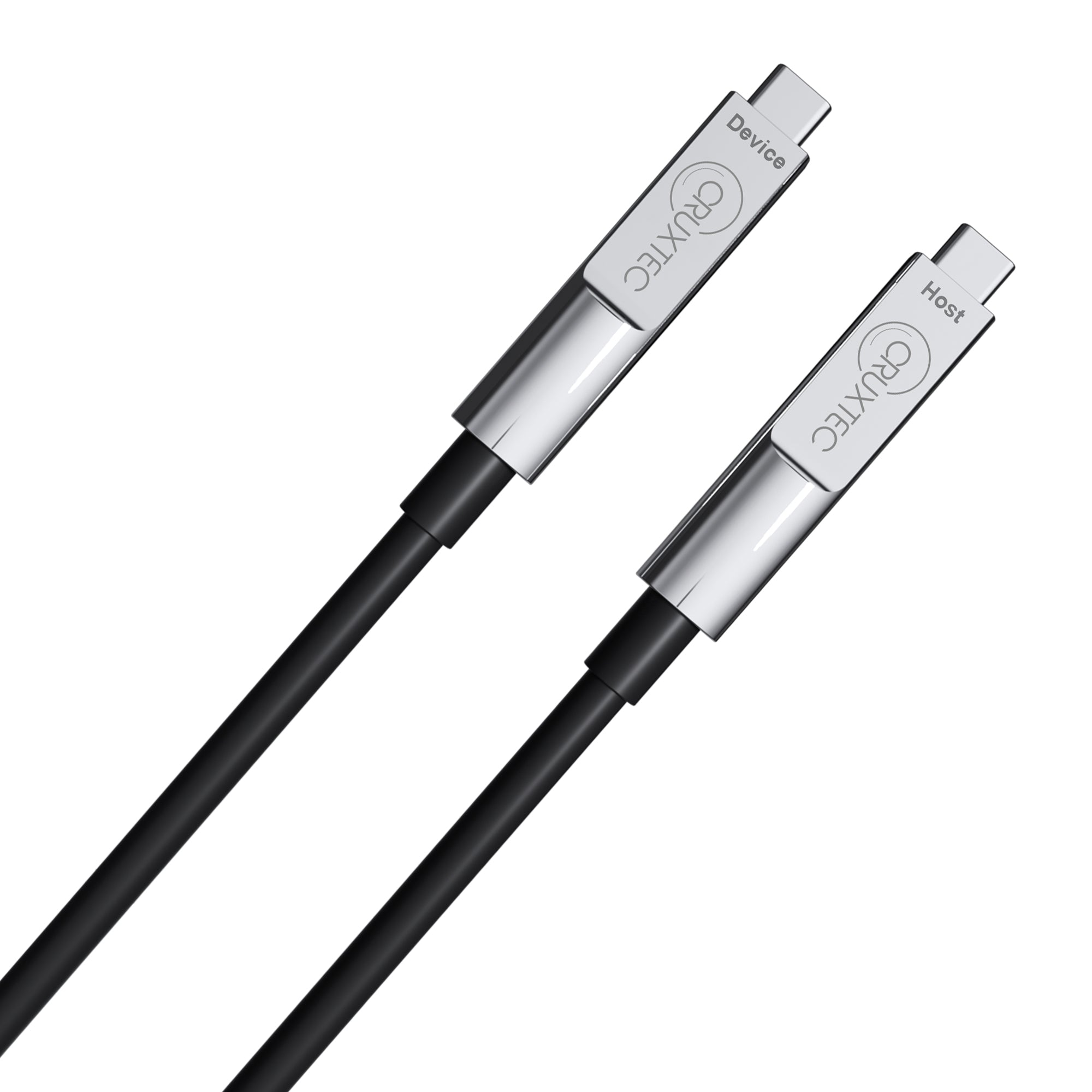

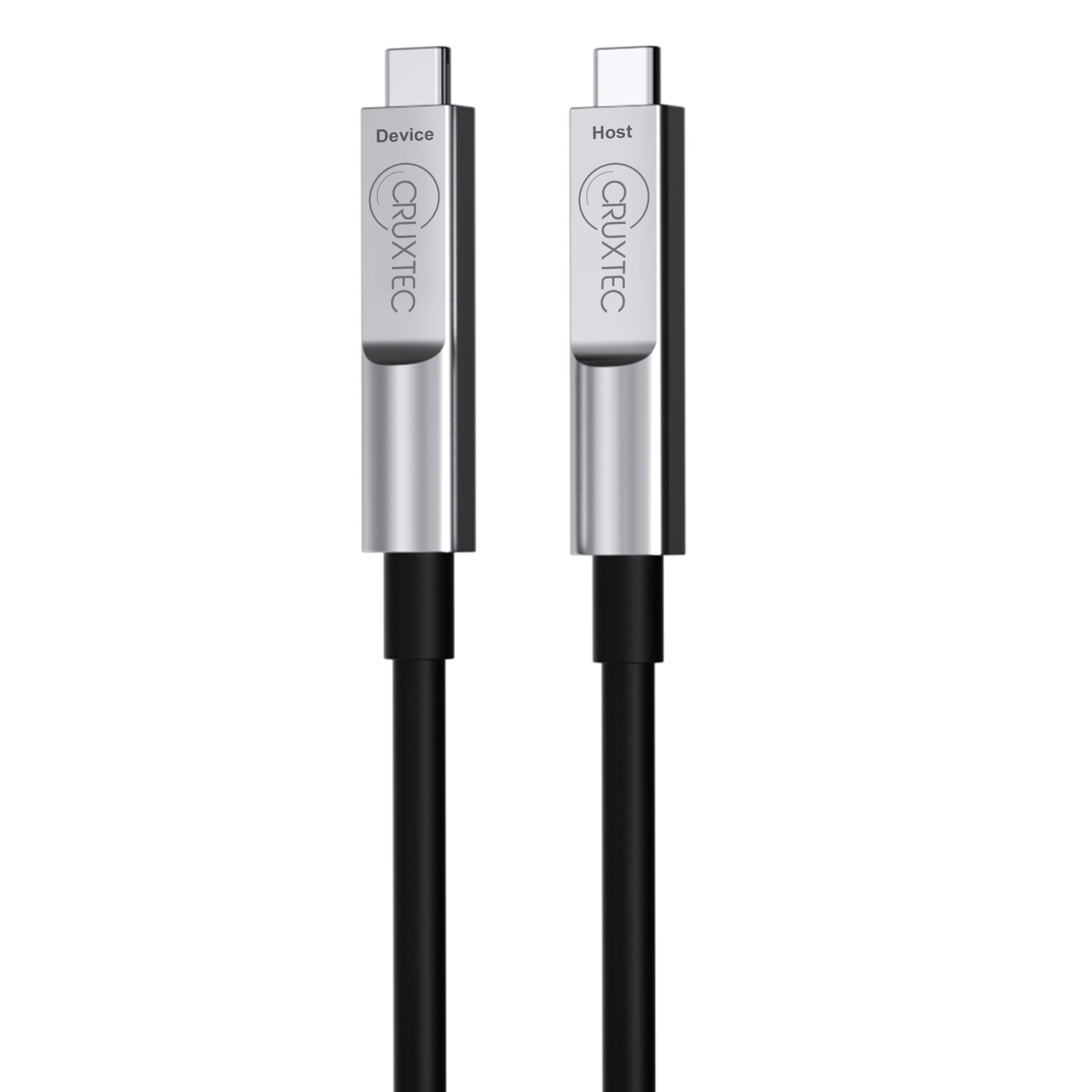

15)User Tips: This optical cable is uni-directional for video and audio transmission. Please ensure the HOST end is connected to the source device (e.g., laptop or computer), and the DEVICE end is connected to the display device (e.g., monitor or TV).
